Description

MPN: SI-SMC-A-P320-S

Features:

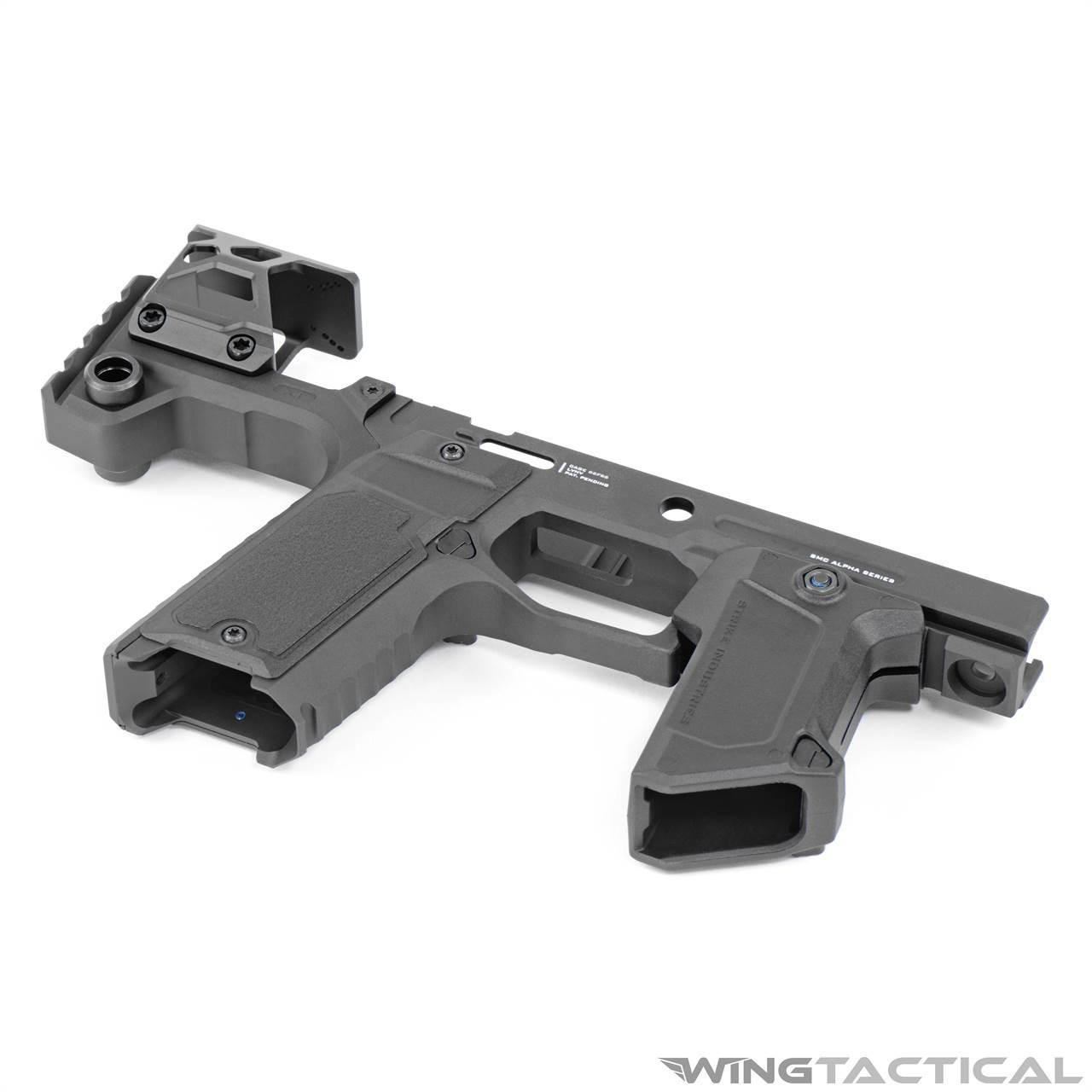

  • The most modular SIG SAUER P320/M17/M18 grip module/chassis in the world
  • Over 20+ configurations with included and optional Strike Modular Chassis (SMC) parts and accessories
  • Included Ambidextrous Side Charging Handle with Slide Cover Mount
  • Works with SMC Rear Module Backstrap (included) and can be configured as a conventional P320 grip module with optional SMC LITE Backstrap (sold separately)
  • SMC Multi-Optic Mount (Footprints: C-More, DeltaPoint Pro, Docter/Noblex, RMR, Shield and all SIG SAUER Open Reflex Sights)
  • Ambidextrous QD sockets located on SMC Rear Module Backstrap
  • Picatinny rail located at front bottom of chassis and on Rear Module Backstrap for accessories
  • Optional to use Spare Magazine Holder for SIG SAUER P320 with SI Modular Magazine Release is included
  • SMC ALPHA for SIG SAUER P320 (Standard) uses SIG SAUER P320 OEM fitment takedown lever and P320 magazine release, SI Modular Magazine Release is pre-assembled and included
  • Machined from 6061-T6 aluminum, sturdier and more durable than polymer

Specifications:

  • Material: 6061-T6 Aluminum
  • Finish: Anodized
  • Weight: 10.6 oz.
  • Overall Length: 7.78"
  • Width: 1.18"
  • Height: 4.43"

**Do not exceed 20 in/lbs (2.25 nM) torque for the x4 set screws for Multi-Optic Mount [M4x7mm T25 Socket Head]


Compatibility:

  • Calibers: 9mm/.357SIG/.40S&W
  • FCU: All SIG SAUER P320 FCUs which include XSeries as well as M17/M18 with complete function of the manual safety. For SMC use with M17/M18 manual safeties, the notch on the chassis is visible and outlined as a guide for the modification needed to be performed for the manual safeties to be usable.
  • Triggers: Only guarantee proper fit and function with SIG SAUER OEM triggers. The SMC is made to fit the OEM standards of the SIG SAUER FCU.
  • Slide Lengths: The SMC will work with all P320 slide and barrel lengths but best matched on ALPHA for SIG SAUER P320 (Standard) with 4.7" slide or ALPHA for SIG SAUER P320 (Standard) with 3.9" slide using SMC Chassis Mounted Compensator (sold separately). ALPHA for SIG SAUER P320 (Standard) not suggest with 3.6" slide.
  • Slide Length Note: Any slide size shorter mentioned in “Slide Lengths:” will have a gap from the front of the slide/muzzle to the front of the SMC chassis front end
  • Chassis Mounted Compensator (sold separately): MUST BE USED with Carry 3.9" length slide to cover the gap between the front of the Carry 3.9" length slide/muzzle to the front of the SMC chassis front end.
  • Magazine Fitment: P320 17-round, 18-round, 21-round and up INCLUDING 10-round (full size length, not compact) magazines
  • Holster: Works with many (but not all) P320 holsters (options w/o or w/ weapon light) matching slide length on the market without the use of Spare Magazine Holder for SIG SAUER P320

NOT COMPATIBLE:

  • .45ACP FCU/Calibers
  • 10mm FCU/Calibers

Red Dot Compatibility:

  • C-MORE, DELTAPOINT PRO, DOCTER/NOBLEX, RMR STANDARD, SHIELD STANDARD & all SIG SAUER Open Reflex Sights
  • When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating
  • Be careful and use your best judgment on which hardware to use for your specific setup
  • All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests

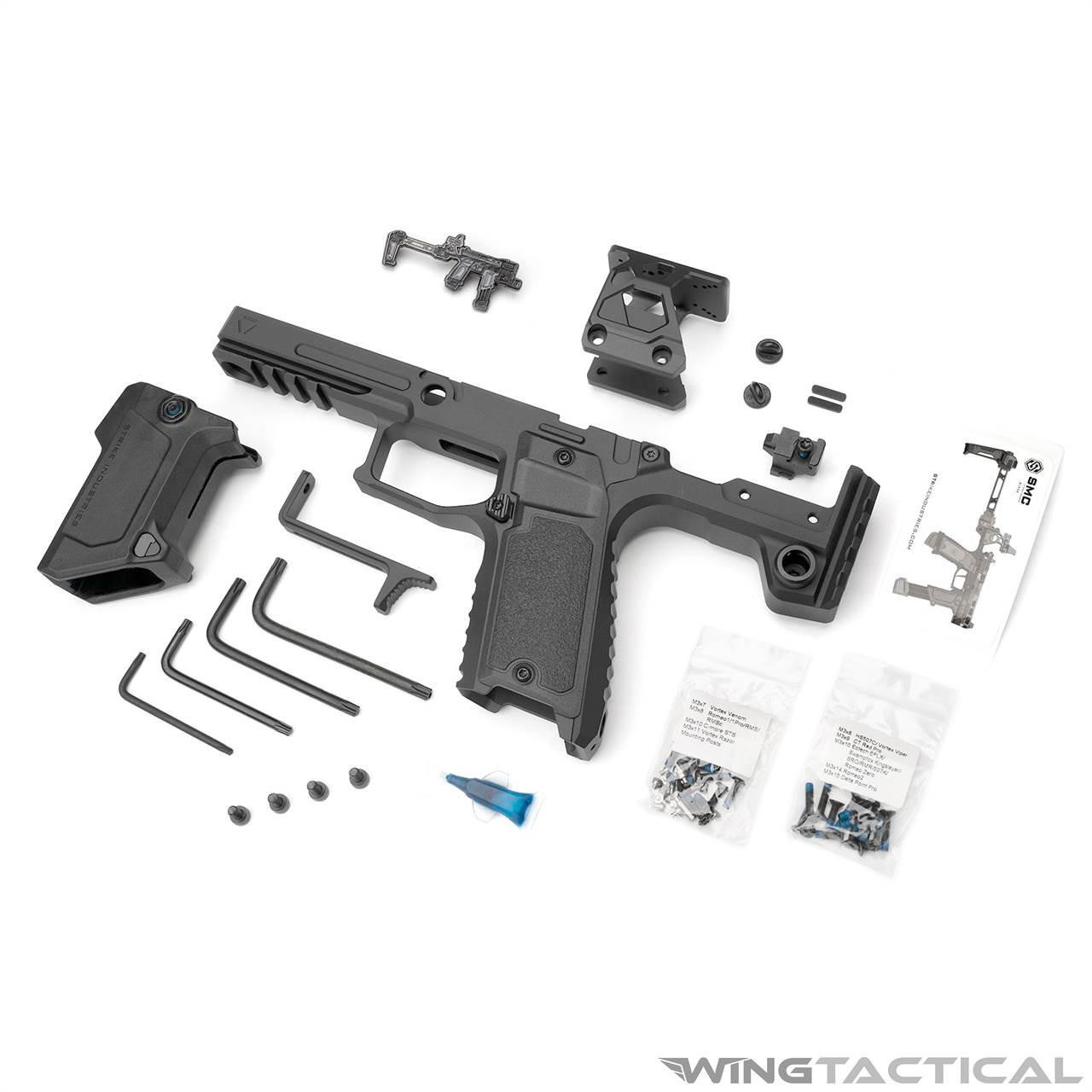

Includes:

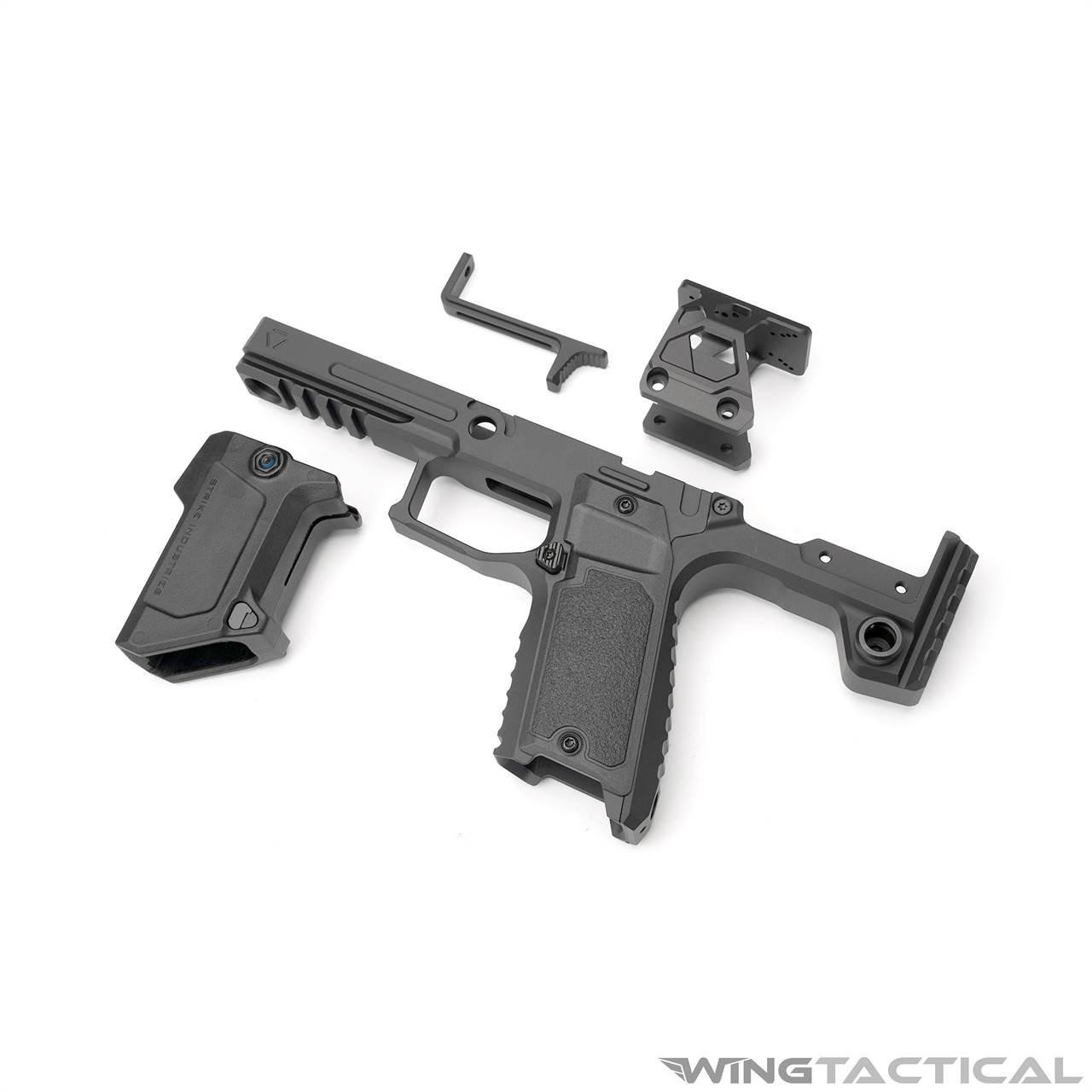

  • 1x SMC - ALPHA GRIP MODULE/CHASSIS with SMC Grip Panels, SI Modular Magazine Release [w/ extended button] and Rear Module Backstrap [w/ QD sockets] (fully assembled)

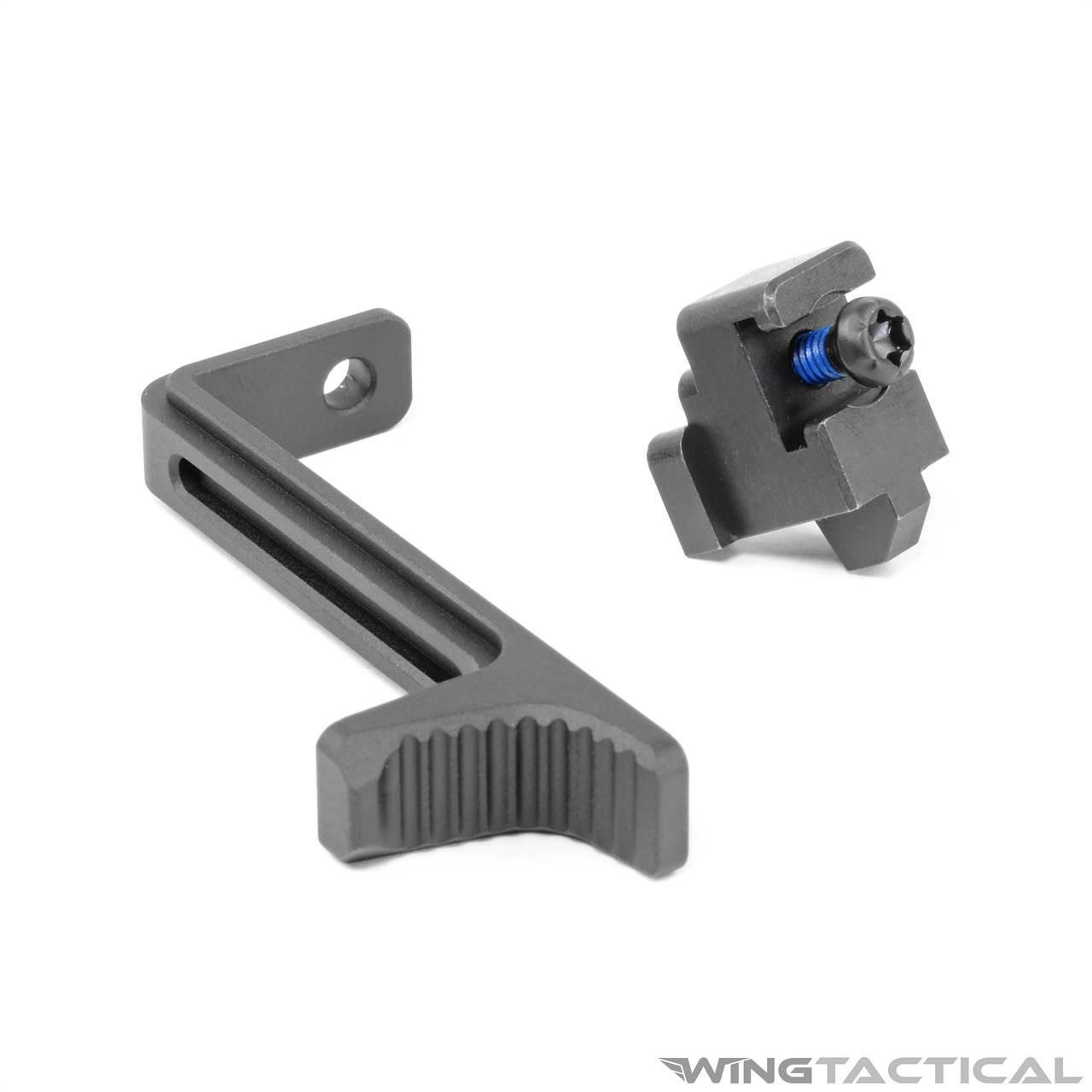

  • 1x Ambidextrous Side Charging Handle
  • 1x Slide Cover Mount for Ambidextrous Side Charging Handle
  • 1x Screw for Ambidextrous Side Charging Handle to Slide Cover Mount [M4x8mm T20 Rounded]
  • 2x Rubber pad for Ambidextrous Side Charging Handle bar [back side facing slide]
  • 1x Spare Magazine Holder for SIG SAUER P320 with SI Modular Magazine Release [w/ extended button] (fully assembled)
  • 1x Screw for Spare Magazine Holder for SIG SAUER P320 [M5x30mm T27 Socket Head]
  • 1x Nut for Spare Magazine Holder for SIG SAUER P320 [M5 Hex]
  • 1x Multi-Optic Mount
  • 4x Screw for Multi-Optic Mount [M4x7mm T25 Socket Head]
  • 3x Screw [M3x8mm T10 Flat]
  • 3x Screw [M3x9mm T10 Flat]
  • 3x Screw [M3x10mm T10 Flat]
  • 3x Screw [M3x14mm T10 Flat]
  • 3x Screw [M3x15mm T10 Flat]
  • 3x Screw [M3x7mm T10 Rounded]
  • 3x Screw [M3x8mm T10 Rounded]
  • 3x Screw [M3x10mm T10 Rounded]
  • 3x Screw [M3x11mm T10 Rounded]
  • 5x Large mounting post
  • 5x Small mounting post
  • 5x Shallow mounting post
  • 3x Tall mounting post
  • 1x Torx tool [T10]
  • 1x Torx tool [T20]
  • 1x Torx tool [T25]
  • 1x Torx tool [T27]
  • 1x Loctite® Threadlocker Blue 243®
  • 2x Warning card
  • 1x SMC Enamel Pin
  • 1x SMC Sticker

**Thread locker for the screw is highly recommended

Details:

Strike Industries is known for making some really innovative firearms accessories, and one of their best creations is the SMC modular chassis system for the Sig Sauer P320. This chassis system accepts the modular fire control unit from a standard Sig P320 and turns it into a PDW-style weapon that is easier to shoot at longer ranges and more controllable.

This modular chassis incorporates an ambidextrous charging handle that can be mounted on either side of the P320 slide. In addition, this modular chassis comes with the SMC Multi-Optic Mount, which can be installed on its rear module. You can mount almost any red dot sight on this chassis and have it independent from the moving slide. This allows for a more stable sight picture and helps tremendously with your accuracy. The rear module also has a Picatinny rail, which can mount any Picatinny-compatible stock, or brace.

The front of the SMC modular chassis for the P320 has a Picatinny rail under the frame, which can be used to mount a wide range of accessories. This modular chassis system comes with a Spare Magazine Holder, which can optionally be mounted on the front for a better grip and easier access to extra magazines.

Installing your fire control unit into this chassis is super easy. It can simply be placed in and is secured in place using the standard OEM takedown lever. As far as the construction is concerned, this chassis is made from 6061-T6 aluminum, which is sturdier and more durable than polymer.

Overall, the Strike Modular Chassis for the P320 is an excellent accessory that can dramatically improve the abilities of your Sig P320 pistol.

Warning:

  • Be careful of thumb/hand placement at front end of Strike Module Chassis/grip module. Misuse or improper placement can cause disfigurement or death.
  • Before every use, always check proper function and that all screws/hardware is secure. Maintain and check all screws/hardware and components regularly as preventative maintenance. Always have your weapon SAFE when not being fired. Always follow all firearms safety rules and never point your weapon at anything you are not willing to destroy.
  • The user is responsible for the modification required to use the M17/M18 manual safeties. The Strike Modular Chassis (SMC) has a visible outline for the shape to fit the M17/M18 manual safeties.
  • Wing Tactical only recommends all work be done by a certified gunsmith.
  • Be aware that once you remove material in the SMC chassis for the M17/M18 notch, you cannot go back and there will always be a notch for the manual safeties once the modification is done to the SMC chassis.

Disclaimer:

  • Know your local/state laws and regulations prior to purchasing this product. If you are unsure whether or not you have an assault weapon, please contact a firearms attorney. Wing Tacatical LLC are not held responsible for injury or damage from inaccurate assembly, misuse, illegal use or modification of this device, nor are we held responsible for your understanding or interpretation of the laws and regulations that may apply.
  • The Strike Industries Sig Sauer P320 Strike Modular Chassis (SMC) - ALPHA is not a firearm. This is a grip module/chassis system made to work with the SIG SAUER P320 FCU and user provided complete slide. You will have to supply your own complete P320 slide w/ barrel, FCU, magazine and optional optic. The Strike Modular Chassis (SMC) is not a serialized product.
