Description
MPN: ARM2974-BLK
Features:
- Atlas / Plan B Compatible: Precision taper and external threads provide a secure, repeatable interface with Atlas/Plan B-compatible suppressor mounting systems
- Triad Muzzle Brake Performance: Engineered to help reduce recoil and muzzle movement, improving rifle control and follow-up shot consistency
- Mini-Reactor Blast Shield Included: Removable shield fits over the Triad brake, providing additional versatility when running the rifle unsuppressed
- Minimalist Suppressor Mount Design: Eliminates bulky locking mechanisms and moving components, helping reduce weight, complexity, and potential failure points
- Precision Taper Interface: Tapered mounting surface promotes consistent alignment and secure suppressor attachment
- Built for .30 Caliber Rifles: Designed for .30 caliber applications, making it a versatile choice for compatible rifle platforms
- Rugged QPQ Black Nitride Finish: QPQ black nitride treatment provides excellent surface hardness, wear resistance, and corrosion protection
Specifications:
- Caliber: .308 Win. / 7.62 NATO / 300BLK / Other .30 Cal.
- Material: Steel
- Finish: Black Nitride
- Weight: 5.96 oz.
- Length: 2.95"
- Outer Diameter: 1.12"
- Bore Diameter: 0.37"
- Thread: 5/8"-24
Compatibility:
- .30 Cal. barrel with 5/8"-24 thread pitch
- Plan B Mounting Systems:
- Rearden Atlas
- Diligent Defense Zilch
- Other Plan B compatible mounts
Includes:
- 1x Armaspec 30 Cal. Triad Muzzle Brake
- 1x Armaspec Mini-Reactor Blast Shield
Details:

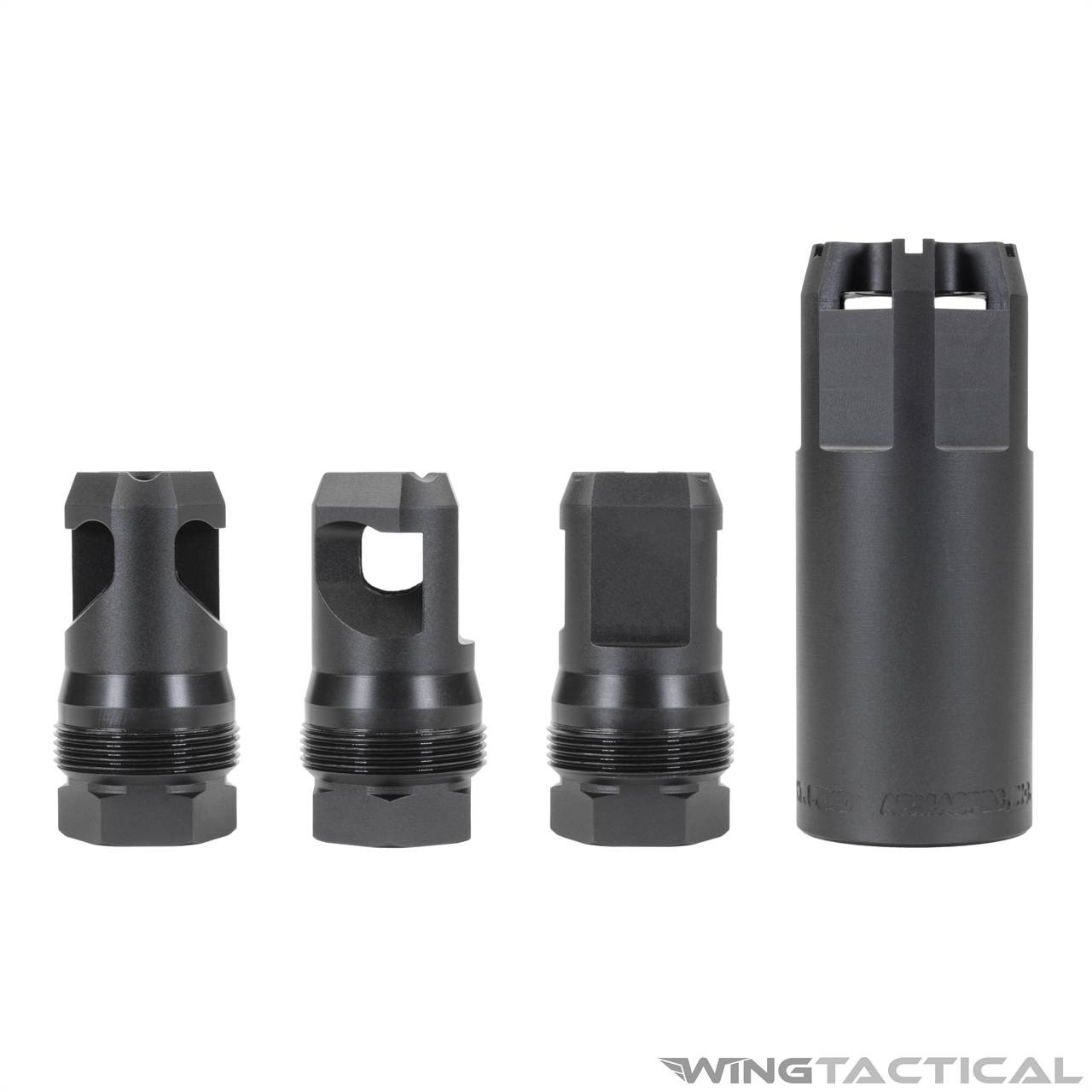

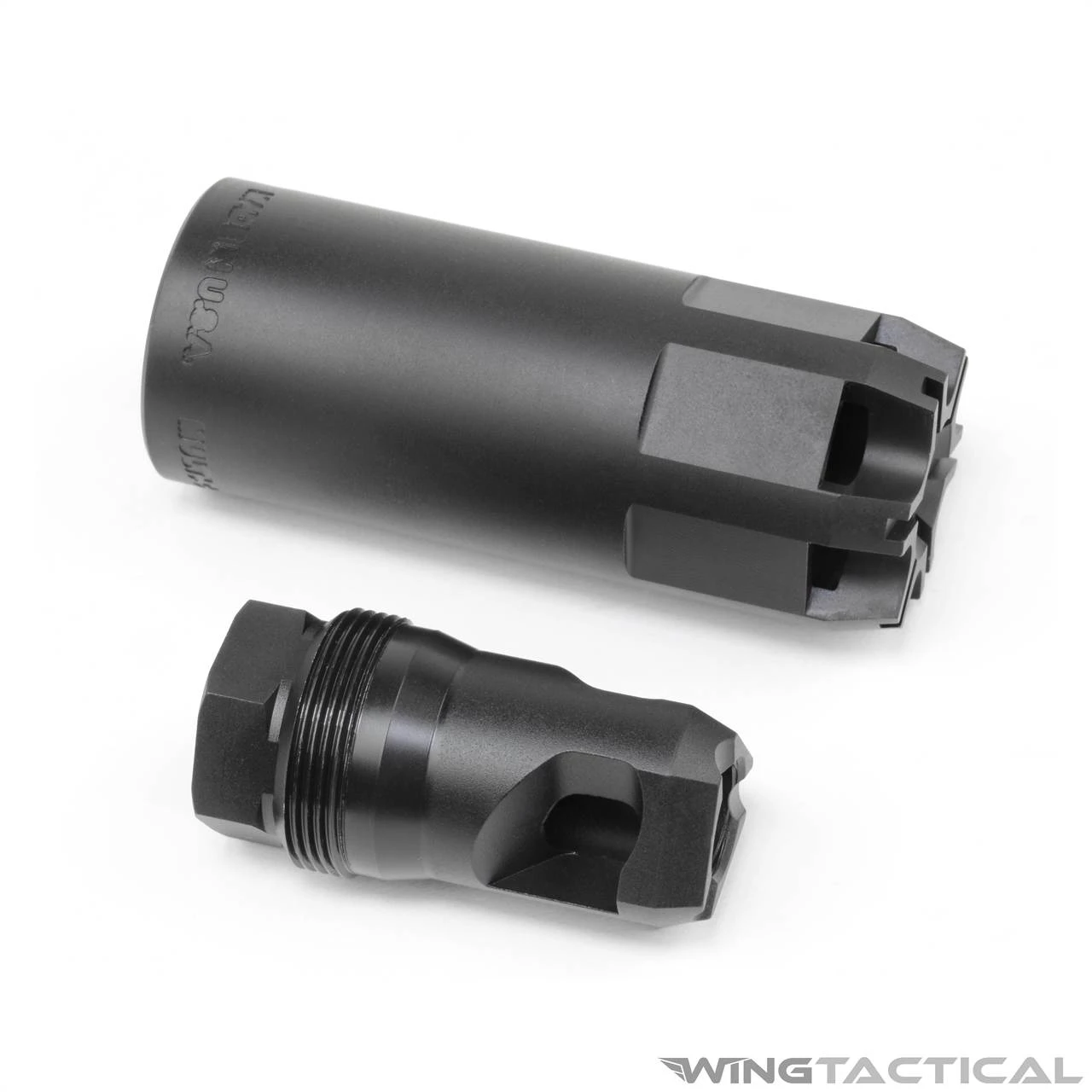

The Armaspec .30 Cal. Triad Muzzle Brake with Mini-Reactor Blast Shield is built around the popular Plan B / Atlas suppressor mounting interface. A precision taper and external threads provide a solid, repeatable mounting surface without relying on a bulky latch, ratchet, or other moving hardware.
For shooters already invested in Plan B / Atlas-compatible suppressors, the Triad can serve as both the rifle’s muzzle brake and suppressor mounting interface.

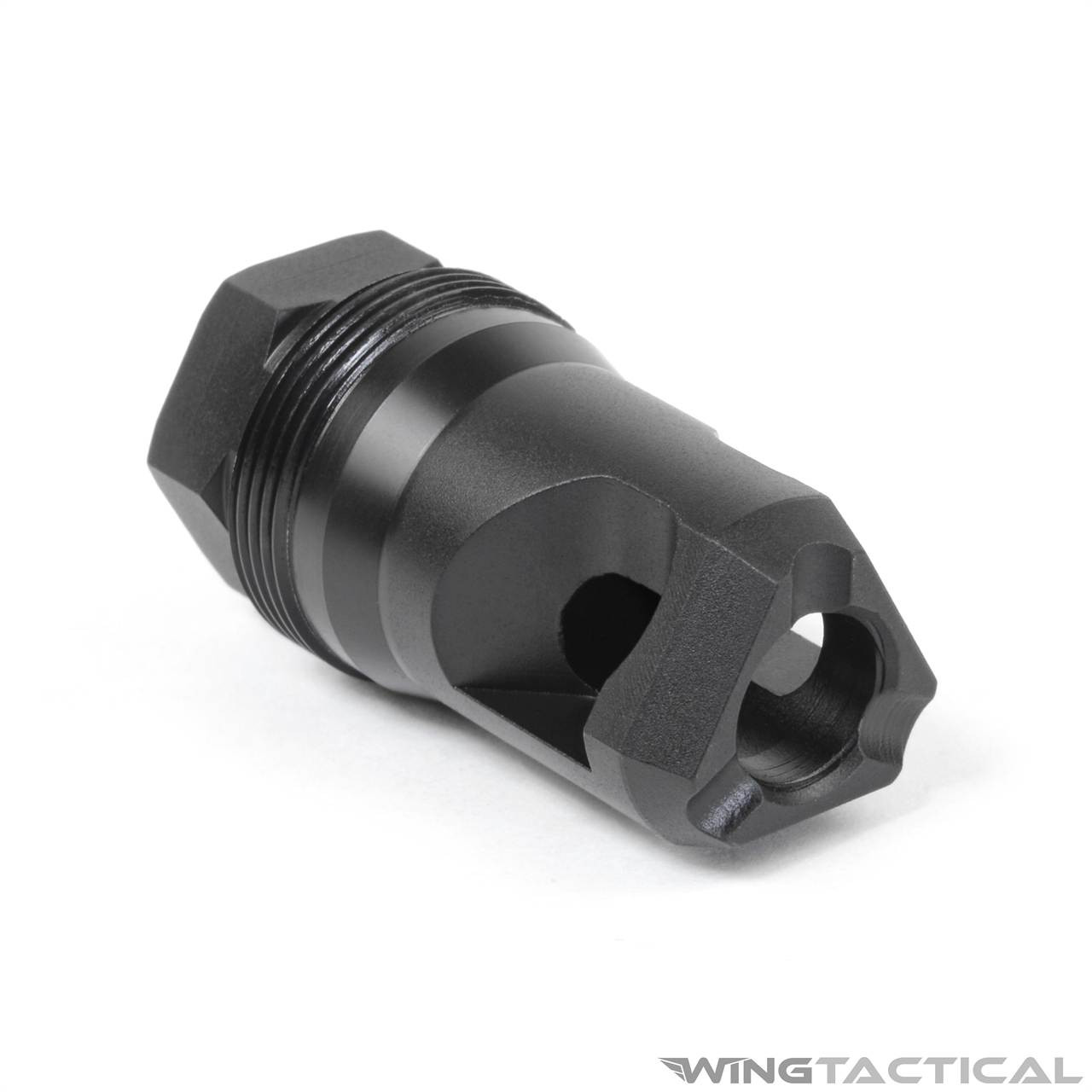

Triad Brake For .30 Caliber Builds
The Triad’s brake geometry redirects expanding gases to help manage recoil and keep the rifle more settled between shots. Its .30-caliber configuration makes it a natural fit for compatible .308/7.62-class builds and other appropriate .30-caliber applications.
The design stays relatively uncomplicated, which is part of the appeal—fewer moving pieces and fewer things to maintain.

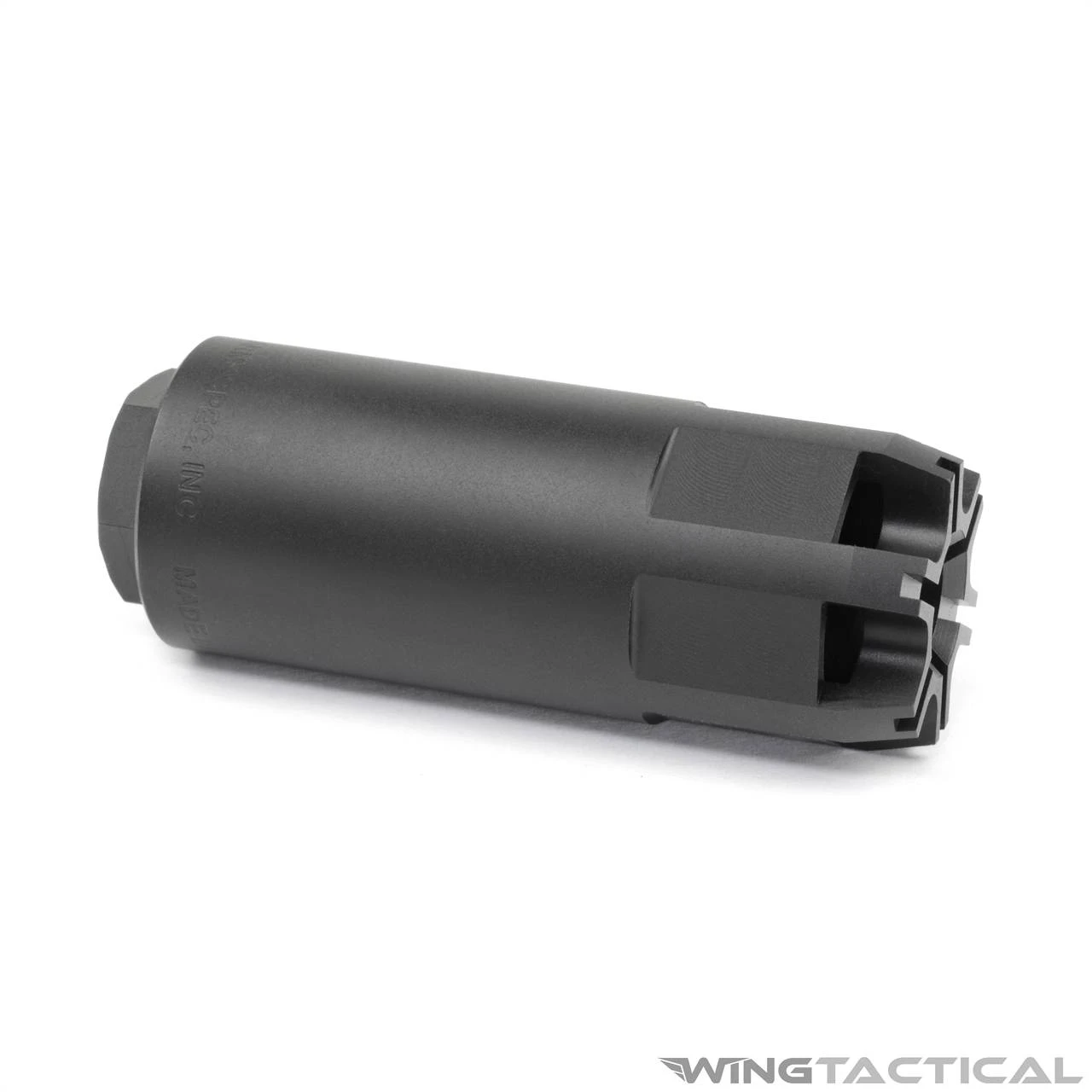

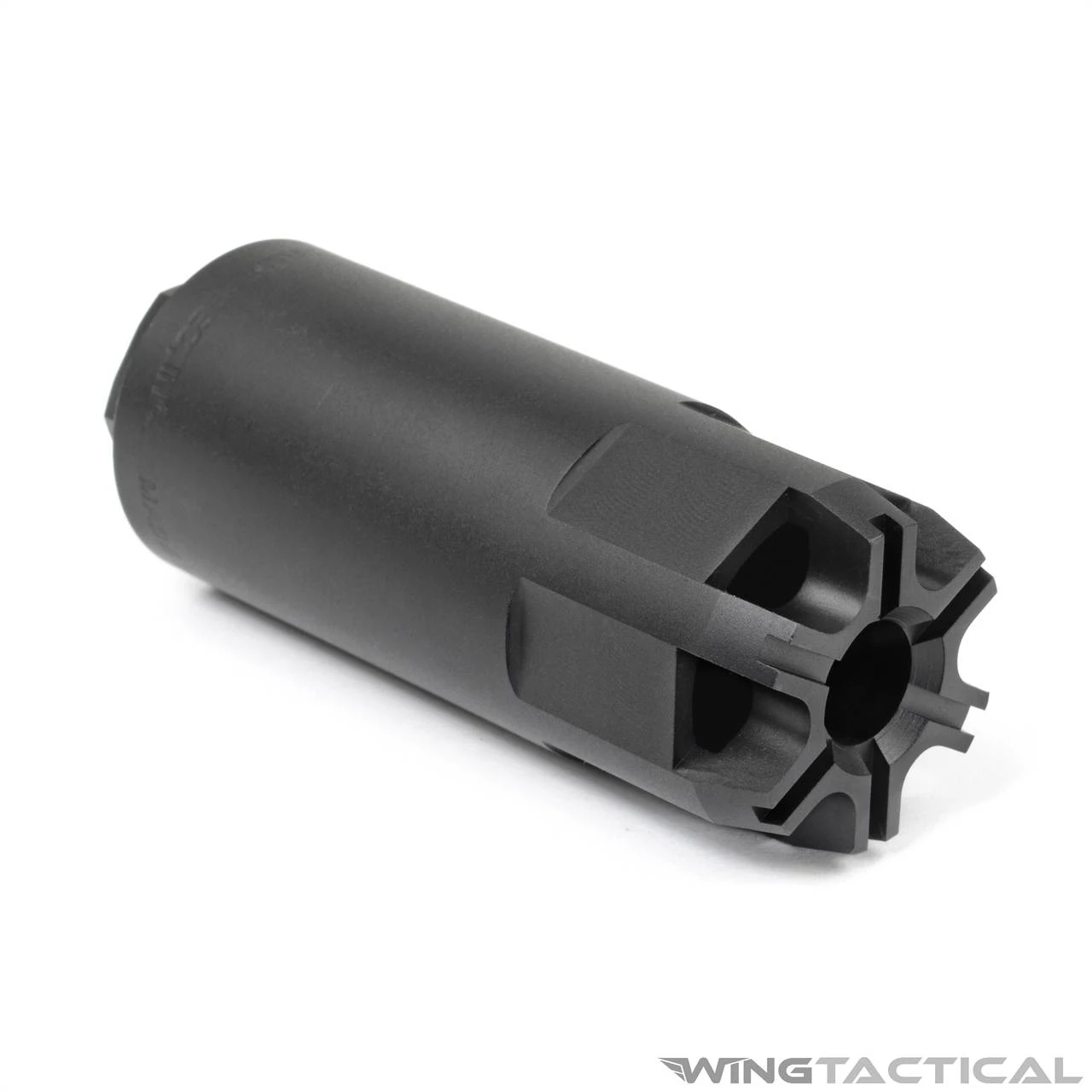

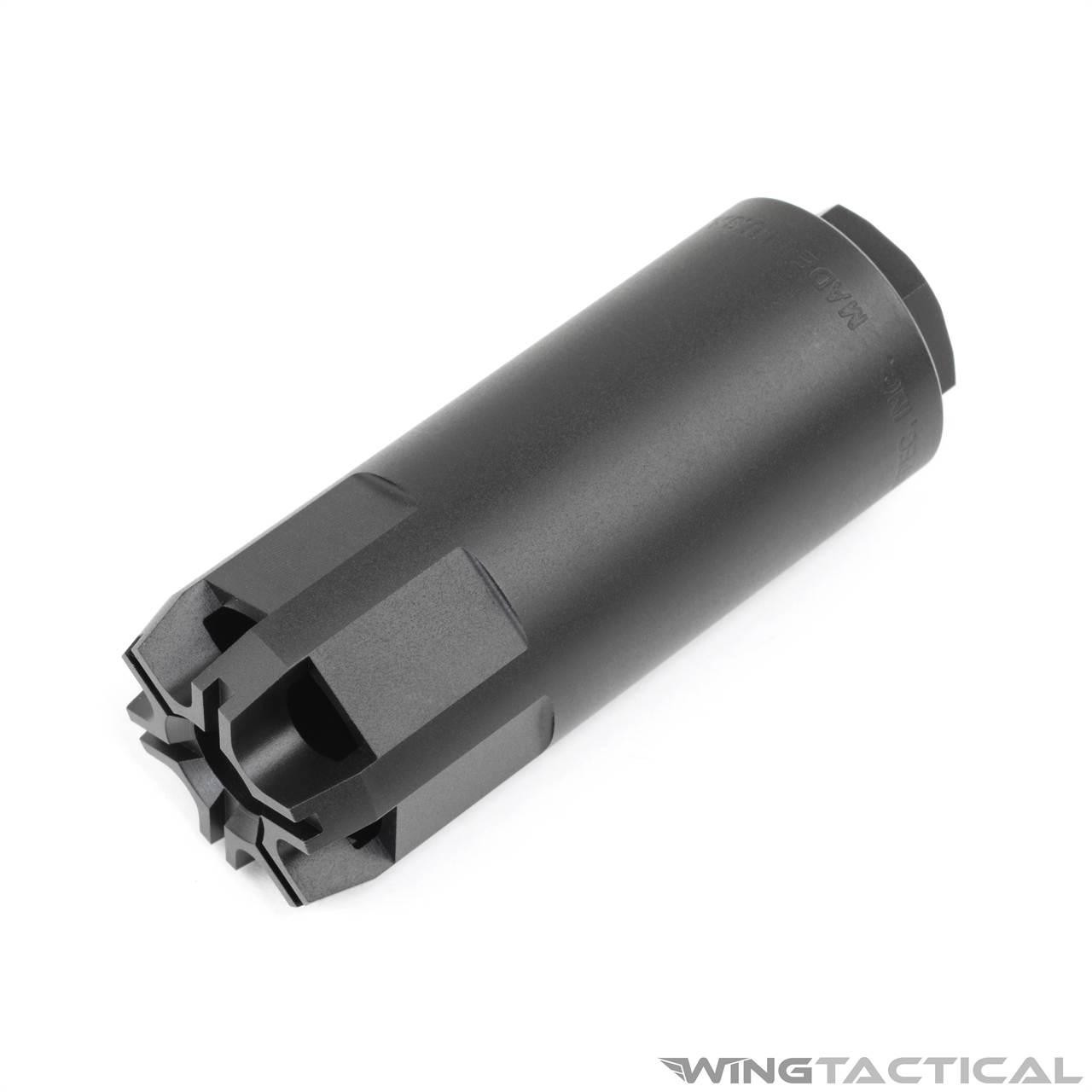

Mini-Reactor Blast Shield Included
When the suppressor isn’t attached, the included Mini-Reactor Blast Shield gives you another configuration option. It fits over the muzzle device and helps redirect the brake’s blast forward rather than leaving the ports completely exposed.
Remove the shield when you want direct access to the Triad’s Plan B / Atlas mounting interface.
Precision Taper Without A Complicated Locking System
The suppressor interface combines external threads with a precision taper. The taper provides a consistent seating surface, while the threaded connection secures the suppressor or compatible accessory in place.
There are no springs, locking collars, or ratcheting components built into the mounting system. That keeps the setup simple and cuts down on potential wear points.
A QPQ black nitride finish rounds out the package, providing a durable, corrosion-resistant surface suited to the heat and fouling a muzzle device routinely sees
