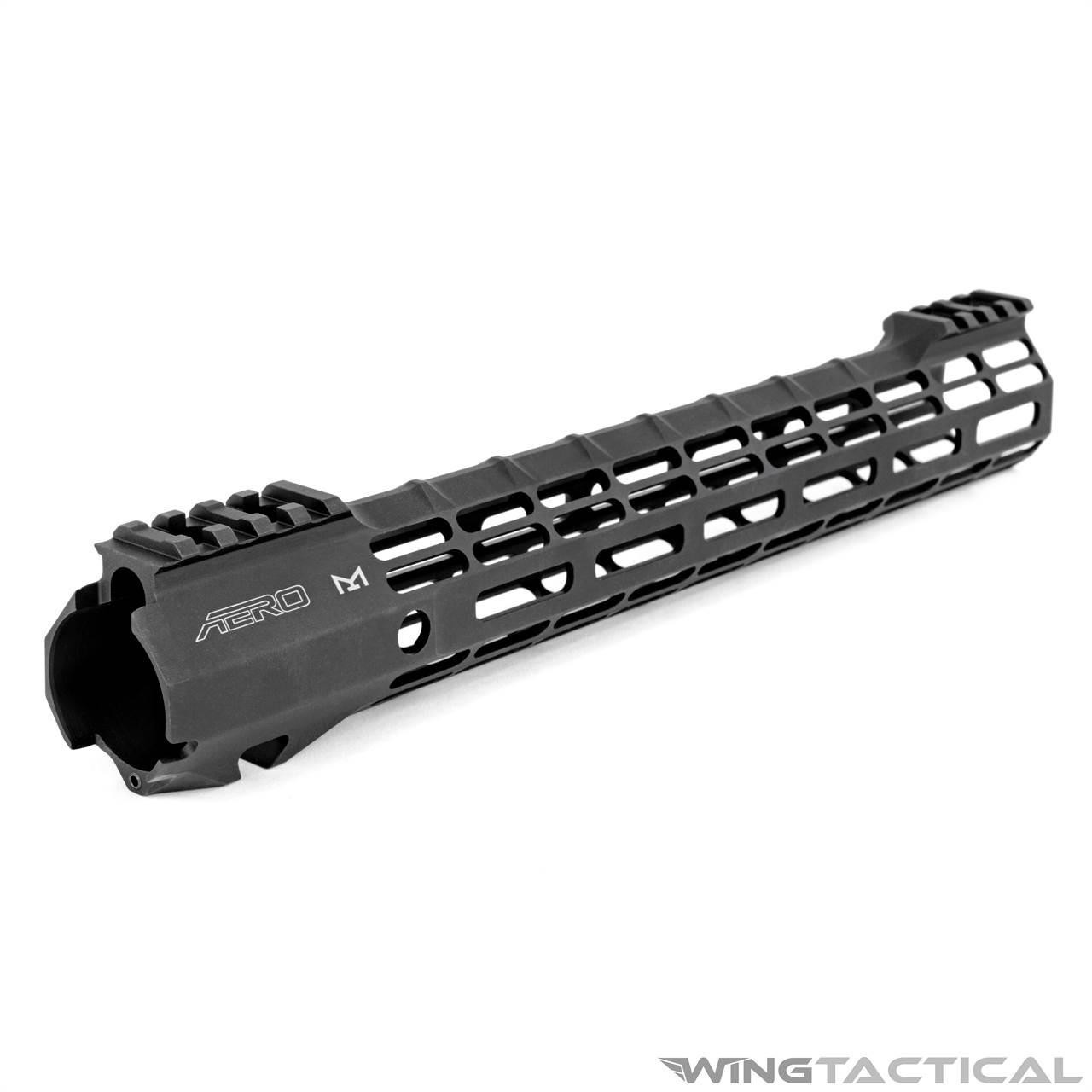

Aero Precision ATLAS S-ONE M-LOK Handguard

Aero Precision ATLAS S-ONE M-LOK Handguard

Product Code:
Calculated at Checkout
$111.99 - $182.74

MPN: APRA500101A / APRA500102A / APRA500104A / APRA500105A / APRA500111A / APRA500112A / APRA500114A / APRA500115A


  • One-piece free float design
  • Compatible with all Mil-Spec AR-15 uppers
  • Eliminated center of top rail for weight reduction
  • Built-in anti-rotation tabs
  • Top scalloped rails on the front and rear of the handguard
  • M-LOK slots at 3, 6, and 9 o'clock positions
  • Quick disconnect sling socket at the 3, 6, and 9 o’clock positions
  • Indexing grooves in 12:00 position for positive grip control

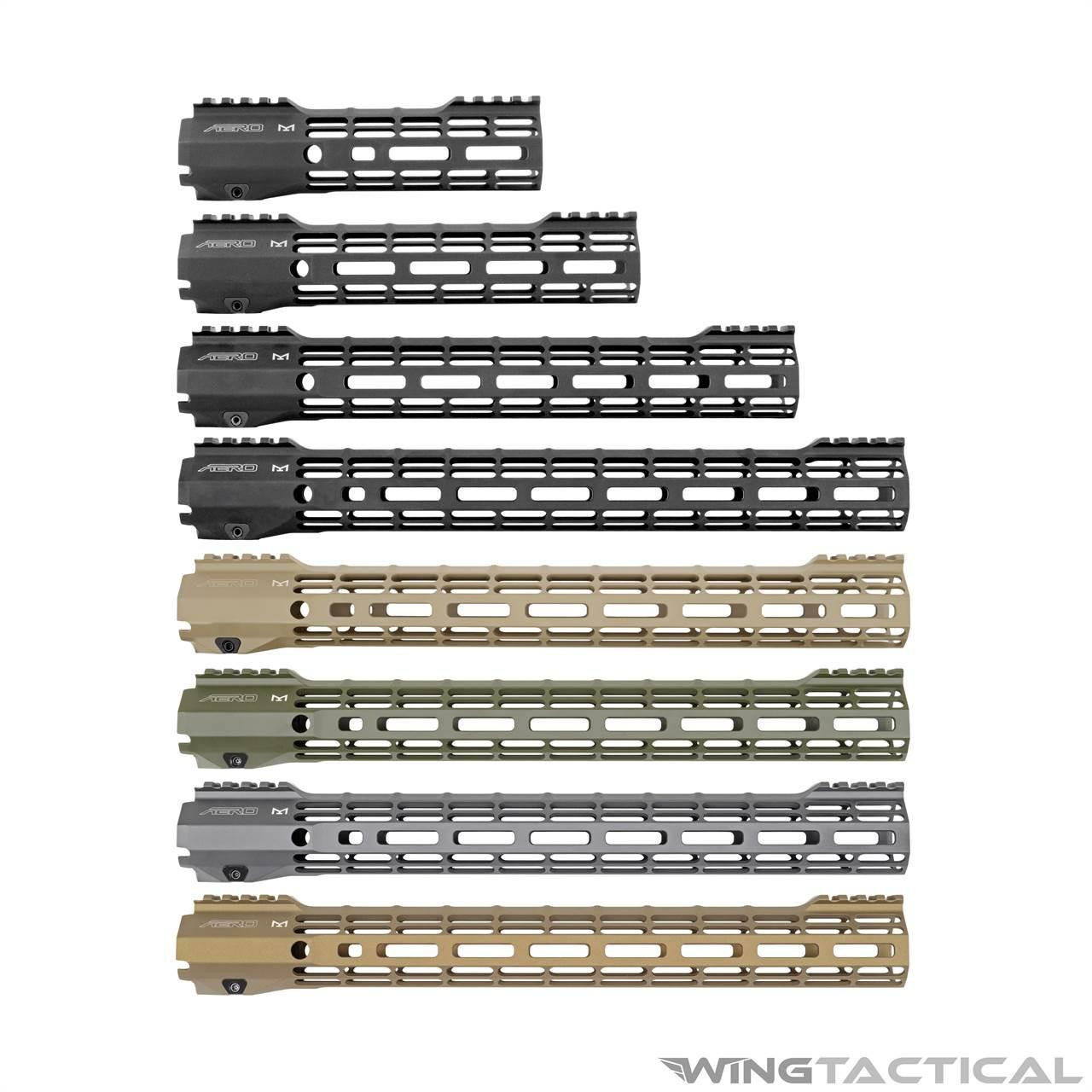

  • Available in Black and Flat Dark Earth


  • Material: 6061-T6 Aluminum
  • Finish:
    • Black: Hard Anodized
    • Flat Dark Earth: Cerakote
  • Actual Length (When Installed):
    • 7-Inch: 7.25"
    • 9-Inch: 9.19"
    • 12-Inch: 12.56"
    • 15-Inch: 14.94"
  • Weight:
    • 7-Inch: 4.86 oz.
    • 9-Inch: 5.47 oz.
    • 12-Inch: 7 oz.
    • 15-Inch: 7.95 oz.
    • Mounting Hardware: 4.72 oz.
  • Inside Diameter:
    • Height: 1.65"
    • Width: 1.3"
  • Outside Diameter:
    • Height: 1.95"
    • Width: 1.51"


  • Mil-Spec AR-15 uppers

**The ATLAS S-ONE M-LOK Handguards are NOT compatible with Aero Precision Enhanced M4E1 Upper Receiver and uppers with build-in handguard mount.


  • 1x Aero ATLAS S-ONE M-LOK Handguard
  • 1x Barrel Nut
  • 1x Barrel Nut Wrench
  • 1x Mounting Hardware Kit


There are problems with some free float handguards that can make picking a new one a bit of a challenge. Some forends warp under pressure when they’re mounted and nobody wants to spend good money on something that literally gives under pressure. If you’re ready to buy an M-LOK free-float handguard, Wing Tactical has the one for you. The latest generation of lightweight Aero Precision Handguards features a proprietary mounting system that equalizes pressure to provide a secure installation without warping the handguard. The Aero Precision ATLAS S-One M-LOK Handguard will make your build (if not your life) complete.

How Does the ATLAS System Work?

The Aero Taper Lock Attachment System uses a specialized barrel nut and turnbuckle screw combination to evenly distribute pressure so that the handguard won’t twist or warp. The added security of a ratcheting detent assures you have a secure handguard that looks great.

It Isn’t Just Pretty; It’s Ready to Work

The Aero Precision ATLAS S-One M-LOK Handguard features M-LOK rails for quick attachment of accessories in the field without a lot of preambles. Simple adapters will allow you to refit your Picatinny accessories to the M-LOK rail for the same speed and ease of use you enjoy from native M-LOK components. The front and back end of the ATLAS S-One M-LOK handguard offer sections of Picatinny Rail for accessories you might want to use in those positions.

Advanced Design Provides a Secure, Comfortable Grip

This Aero Precision Handguard included machined ridging across the 12 o’clock surface that provides a little extra grip but doesn’t negatively affect the operator’s comfort. When you equip your rifle with the Aero Precision ATLAS S-One handguard, you’ll get a secure, comfortable M-LOK free float handguard that has all the features you need and great looks too.

Write a Review

25 Reviews

  • S-one

    Posted by TJ on 21st Jan 2021

    Overall it’s a nice looking mostly functional guard. The measurements for dimension are not quite accurate and if you plan on running an adjustable gas block like I am I tried a few options. Only one that fit was the superlative arms low profile adjustable. I’m not the biggest fan of the was the guard is secured, however it seems to be holding well. Time will tell.

  • Interior fit

    Posted by Timothy Howley on 8th Jan 2021

    The handguard is nice feeling and appearance. Sadly i have tried 2 different adjustable gas blocks both with deminsions that say they'll fit (barely) and they dont without force (odin low profile adjustable and JP enterprises adjustable low profile gas block). I'm not sure if anything other than Aeros own low profile adjustable will fit, so just be aware if your plan is to use an adjustable set up.

  • Atlas s-one handguard

    Posted by Steve on 15th Sep 2020

    I am on my 5th build using this and would use no other. Easy on, easy off. Nice smooth design for comfortable grip.

  • Solid addition

    Posted by Jeffery Towers on 11th Jun 2020

    Everything about this handguard is spot on. Fit, form, and function! It mounts solid with no deformation.

  • Excellent overall!

    Posted by Dusty Arrow on 5th Jun 2020

    High quality in a lightweight configuration. Very nice packaging that did the job. All parts and tools worked perfectly. I would definitely use this in another build.

  • atlas s one. Great

    Posted by Zach on 9th May 2020

    quality built locking system amazing and it fits a the hand like a glove

  • Areo 12" handguard

    Posted by Steve Holman on 26th Apr 2020

    Great fit and finish, exactly what I wanted too finish my build. Super easy to install.

  • I can’t use it

    Posted by Erik T on 8th Mar 2020

    I love Aero and their quality. I was disappointed that it would not fit on my x-products side charging upper. I guess I needed to pay attention to the fact that this upper does not fit flush to the upper.. it slides past the side of the upper... well it’s supposed to. Now I have extra hand guards for a friend :(

  • Great purchase

    Posted by Austin c on 7th Jan 2020

    Solid system for the money comes with barrel nut and custom wrench along with all installation hardware fits great and looks great. Will buy again

[ ]
