Description

MPN: BAD-EPS

Features:

  • AR15 Compatible - fits all AR15 lower receivers with Mil-Spec .250" diameter front pivot and rear takedown pin holes.
  • Patent Pending Pin Head Designs - greatly improved gripping surface and pull strength without the use of oversize heads.
  • Low Profile Pin Heads - low drag and never in the way. Lower profile than mil-spec pin heads.
  • Ambidextrous Safety Compatible - the ETP (Enhanced Takedown Pin) head design does not obstruct the use of the right side ambi safety selector lever.
  • Extended Pin Tips (+0.030" over Mil-Spec) - added tip length noticeably aids in starting/pushing the pins out from the left side of the receiver, without undue protrusion.
  • Bullet Tip Guide - cone shaped recess at both pin tips prevent accidental bullet or tool slip and reduced the chance of scratching/damaging of the receiver.

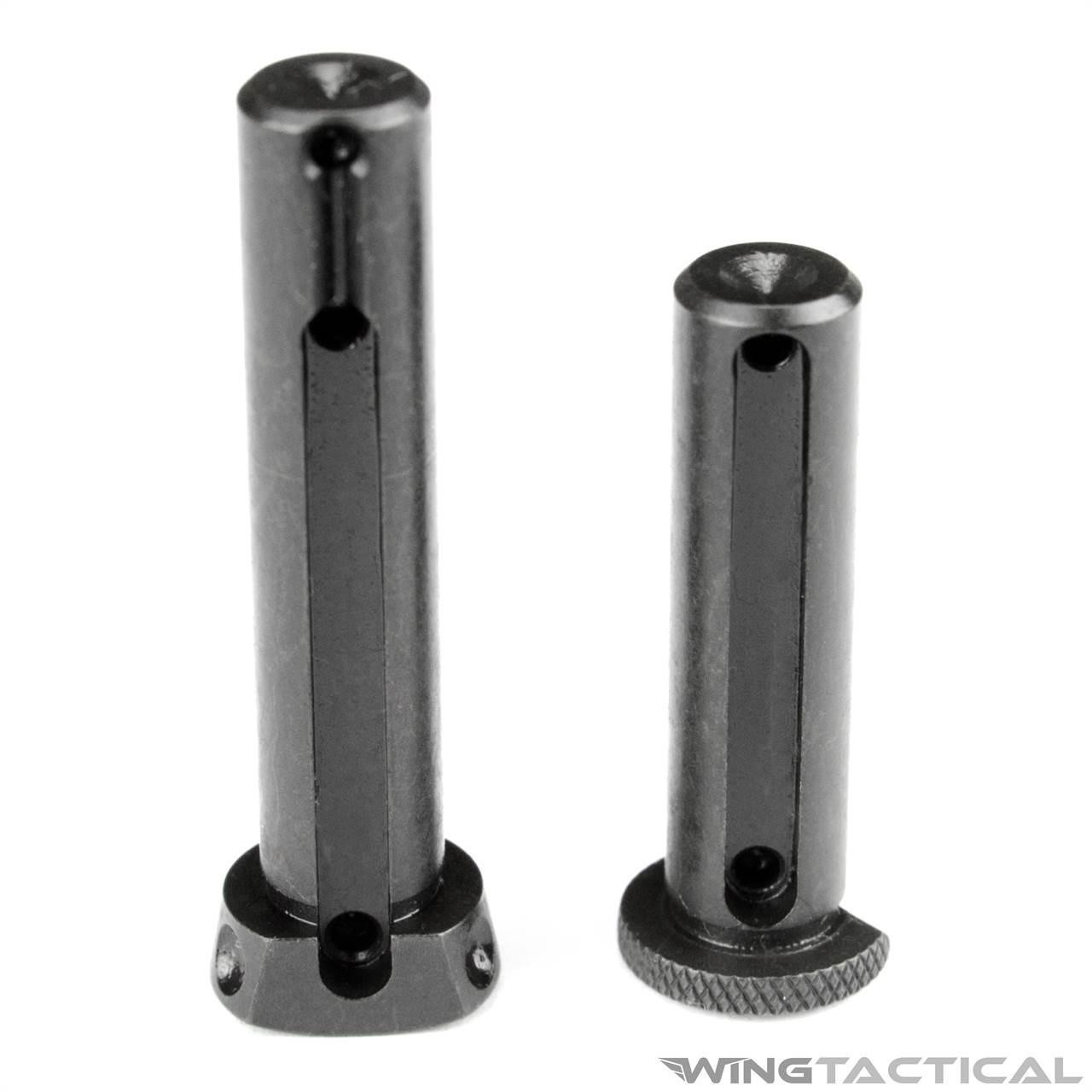

  • Patent Pending EZ Guide Channel & Magnetic Assist Install - Easy, hassle free magnet assisted installation of the EPP (Enhanced Pivot Pin). No more lost detents and springs.

Specifications:

  • Material: Steel
  • Finish: Mil-Spec black manganese phosphate
  • Weight:
    • Pivot Pin: 0.28 oz.
    • Takedown Pin: 0.21 oz.
  • Pin Diameter: ~0.248"

Compatibility:

  • AR-15

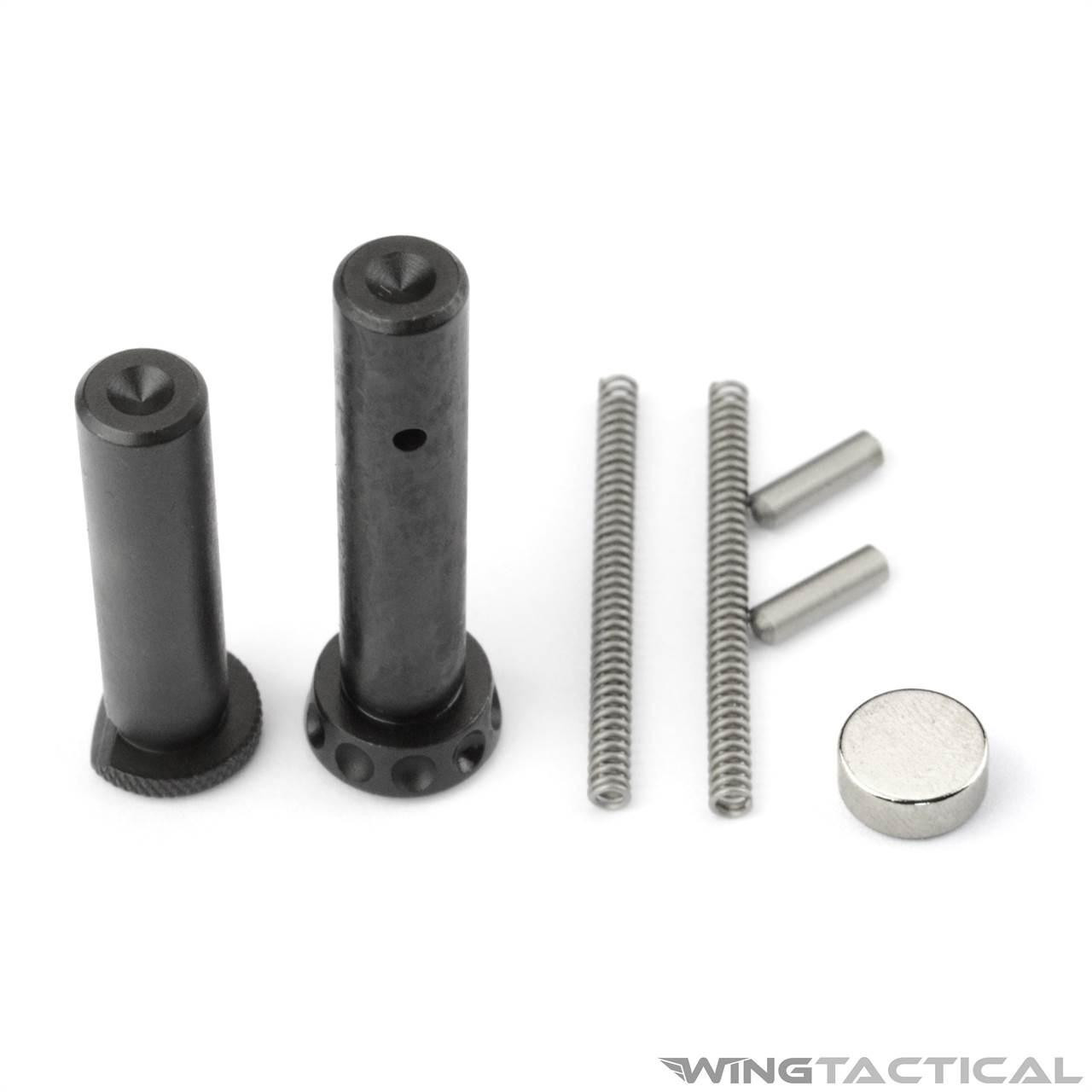

Includes:

  • 1x Enhanced Takedown Pin
  • 1x Enhanced Pivot Pin
  • 2x KNS hardened stainless steel detents
  • 2x 17-7 nickel plated stainless steel pin springs
  • 1x High-strength neodymium magnet for hassle free magnet assisted installation of the Enhanced Pivot Pin.

Note:

  • Incompatible with the AX556
  • Depending on your receiver, may not be compatible with the KNS anti-walk sear pin without modificaiton to the KNS anti-walk sear pin.

Details:

Battle Arms Development produces the Enhanced Takedown and Pivot Pins Set (EPS) for AR15 users who require the best in every single part of their rifles.

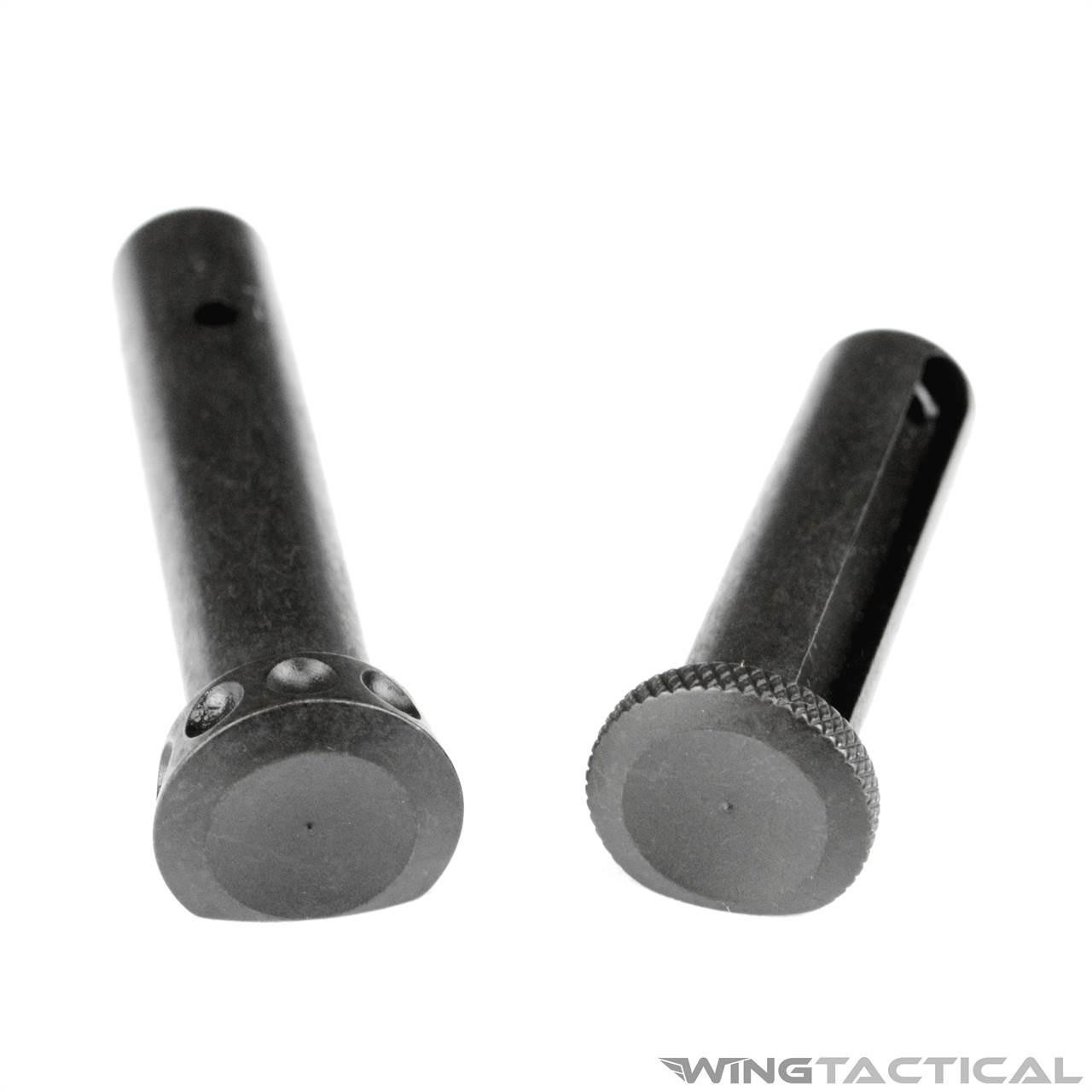

The EPS makes disassembly easier than ever. The enlarged pin tips make it a breeze to push the pins through from the left side of the rifle without creating a snag point. The pin heads are knurled around the sides and tapered inward to form a superior gripping surface.

Another useful feature is the presence of cone-shaped dimples on both sides of the takedown pin, which prevent pin punches from sliding off and scratching the receiver during disassembly or reassembly. The EPS is also fully compatible with ambidextrous safety selectors.

Have a question?

Ask an Expert

Reviews (5)

  • Great!
    5

    Posted by Junior on 24th Jul 2017

    I bought these for my son's first AR15. I use them also, that's why I recommend him get the set. I have a set of A Strike Industry ones, but they dont compare the B.A.D. set

  • Buy These from Wing Tatical
    2

    Posted by Unknown on 3rd Sep 2016

    These are nice but fit poorly. Learn from me - Buy these from Wing Tactical so you can return them if you don't like the way they fit. The bottom of the pivot pin head does not fit flush when you push it all the way in and it sticks out clearly leaving a gap and looks bad. This was on both a Spikes and an Anderson lower. I contacted B.A.D. and they wrote, "We will inspect the pins to see if it is out of spec and if it is in spec, there isn't much we can do since you purchased the product from.......... and you have received what you paid for."

  • BAD-EPS will be on all my builds
    5

    Posted by Eric on 24th Jul 2016

    Typical battle arms quality and fitment. These pins look and perform flawlessly. I will definitely be recommending these pins to anyone completing a build or just looking to upgrade their current AR
