MPN: 07000113 / 7000125 / 7000134


  • Made with the material callouts and manufacturing process for the M249 Machine Gun barrel
  • This cold hammer forging process work hardens the steel around a rifled mandrel, which creates the lands and grooves
  • Chrome lined to the spec for a M249 Machine Gun barrel, which is about twice as thick as that of an M4 barrel
  • 556 Noveske Match Chamber - improve bullet hook-up in the throat, while keeping to functional properties of the NATO body dimensions
  • Extended M4 feed ramps

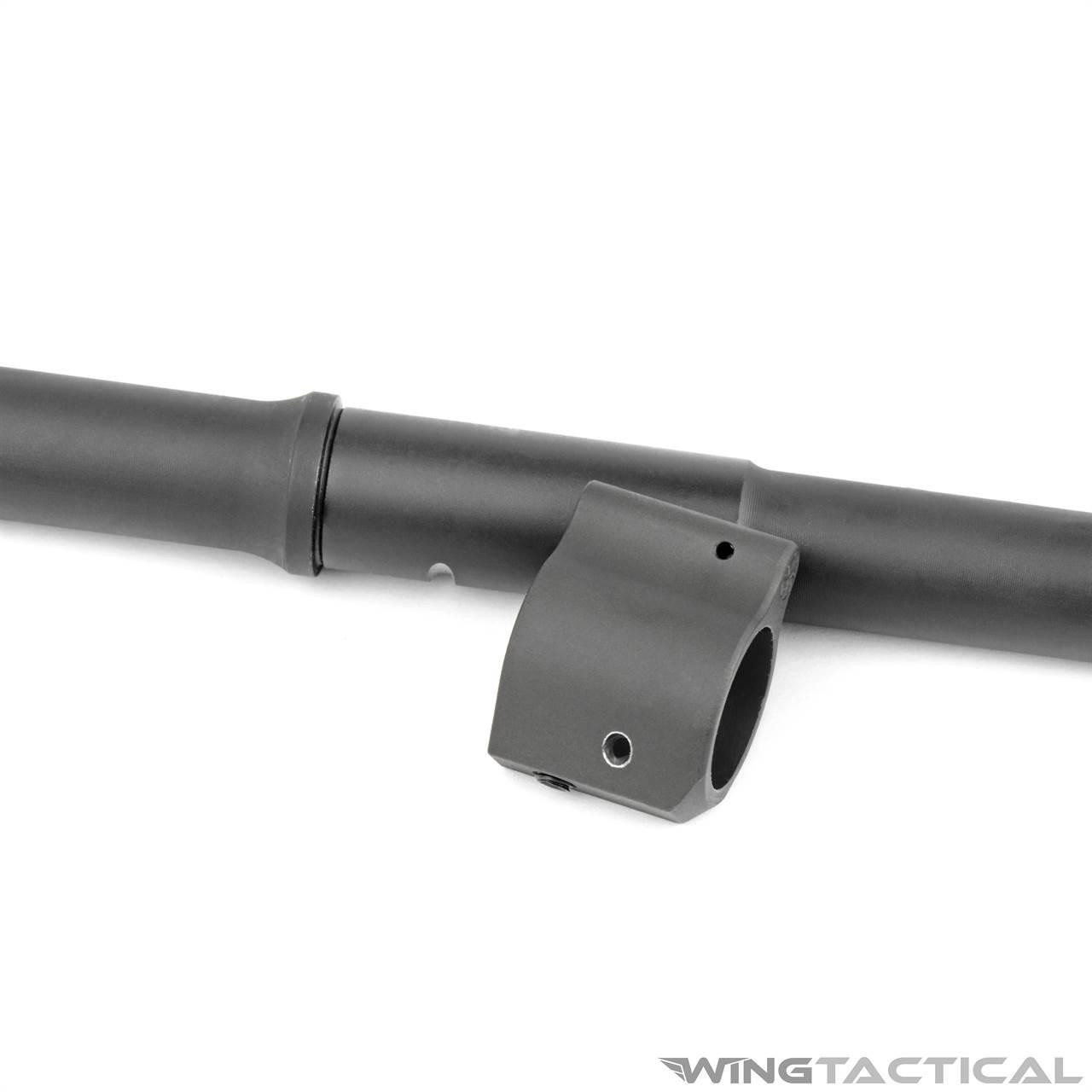

  • Comes with a pin-ready low-profile gas block and a pin for easy installation
  • Gas tube and gas tube roll pin


  • Caliber: 5.56 NATO

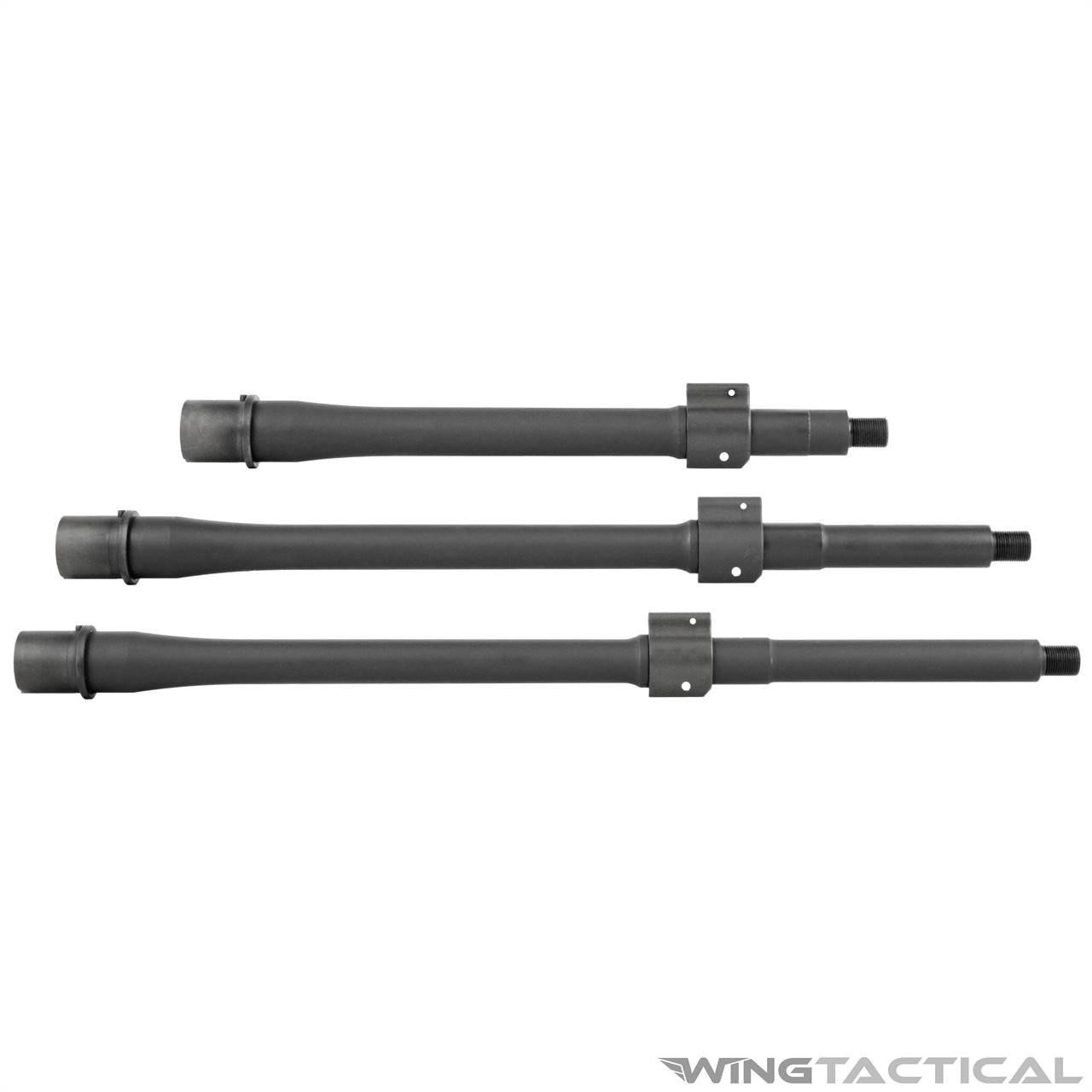

  • Barrel Length: 10.5-Inch, 14.5-Inch, or 16-Inch
  • Gas Seat: 0.750"
  • Profile: Light Contour
  • Gas Placement:
    • 10.5-Inch: Carbine-Length
    • 14.5-Inch: Mid-Length
    • 16-Inch: Mid-Length
  • Twist Rate: 1:7 Twist
  • Material: Cold Hammer-Forged Steel
  • M4 Feed Ramps: Yes
  • Muzzle Thread Pattern: 1/2"-28
  • Finish: Manganese Phosphate
  • Weight:
    • 10.5-Inch: 1 lb 5.98 oz.
    • 14.5-Inch: 1 lb 10.35 oz.
    • 16-Inch: 1 lb 12.68 oz.


  • AR-15

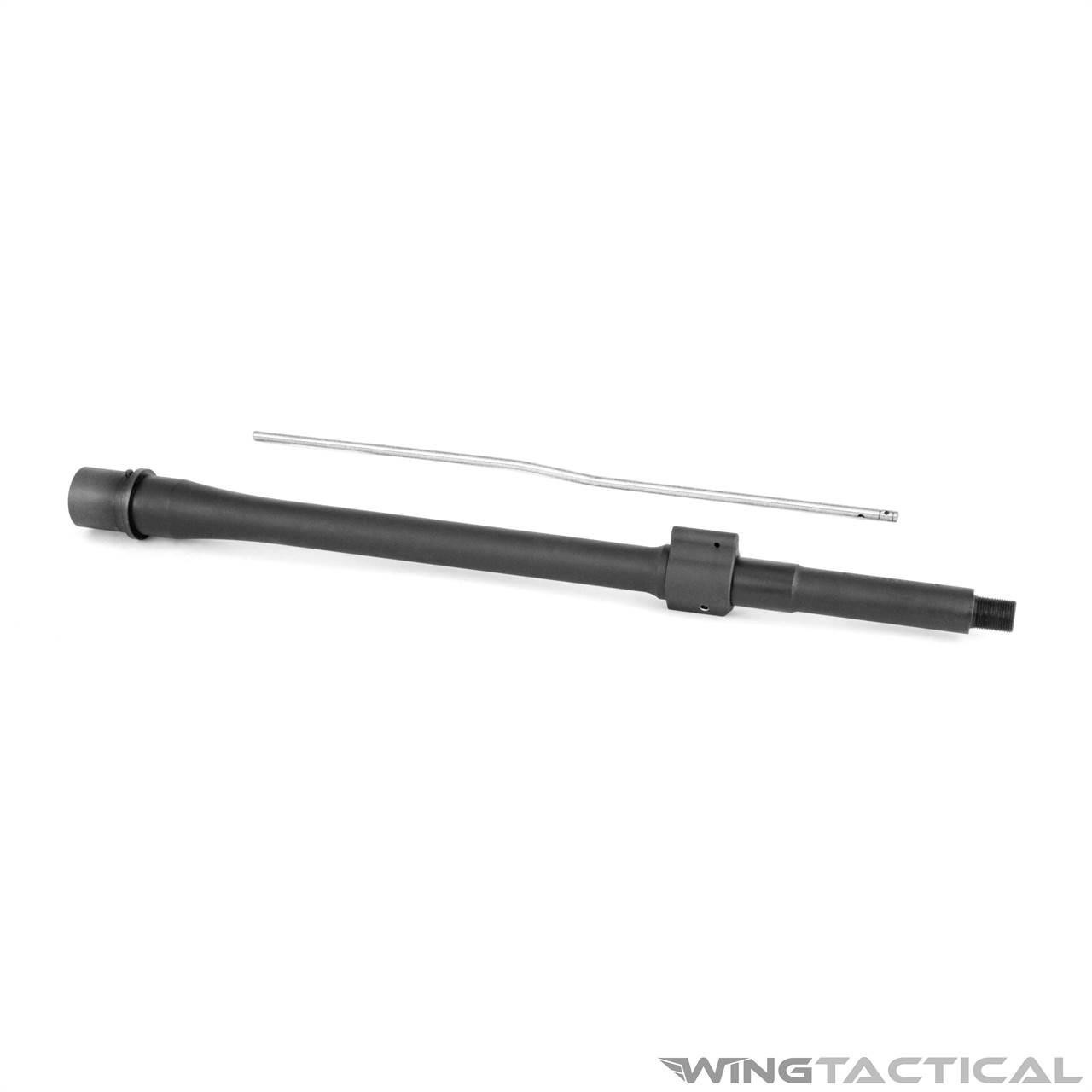

  • 1x Noveske CHF Chrome Lined 5.56 AR-15 Barrel
  • 1x Low-Profile Gas Block
  • 1x Gas Block Set Screw
  • 1x Carbine or Mid-Length Gas Tube
  • 1x Gas Tube Roll Pin
  • 1x Gas Block Pin


Tried and true methods sometimes far outstrip new tech in a lot of areas. You can machine the perfect barrel, use advanced rifling methods and line it with the most enhanced coatings known to man, but questions still remain. Chief among them: Will it wear? When you don’t have time to wonder, it’s time to turn back to what you already know: A cold hammer forged chrome lined barrel runs longer under hard use than anything else we know. If you’re looking for a quality cold hammer forged chrome lined barrel for your next project, a Noveske CHF barrel is exactly what the old doc would prescribe.

Noveske’s CHF Barrel: Durability You Can Count On

When you want quality you can count on in a chrome lined AR-15 barrel, a Noveske AR15 Barrel is the one you want. The CHF process creates an extra durable rifling pattern that’s tough as they come. If you’re concerned about the durability of that chrome lined barrel, rest easy, Noveske used the specs of the M249 machine gun and applied them to this barrel, giving it a hard chrome coat twice as thick as that in most chrome lined AR-15 barrels. If you’re driven to make a lot of empties, this is the barrel for you. The Noveske AR15 barrel will stand up to the heat and wear of heavy shooting without missing a beat.

Wing Tactical and Noveske Bring You the Best

At Wing Tactical, we make it our mission in life to bring our customers the components they need to stay ahead of the competition. That means we love bringing you products from great manufacturers like Noveske. When you're looking for a chrome lined barrel, let Wing Tactical help you choose the Noveske CHF barrel that’s right for your next project, and give yourself an edge.
