- Durable stainless steel pins
- Special anti-creep retainers that prevent wear on your irreplaceable receiver
- No modification to firearm required during installation.

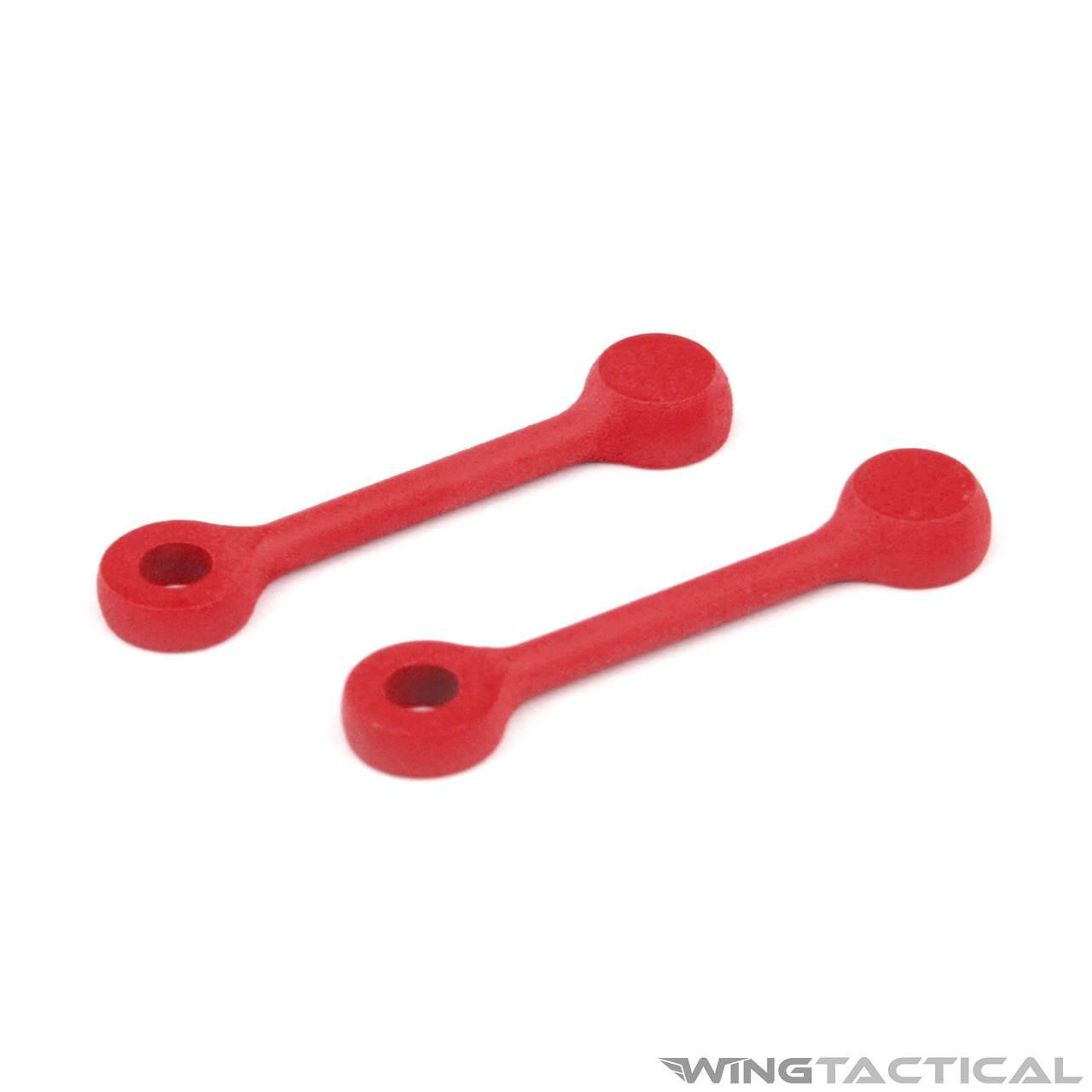

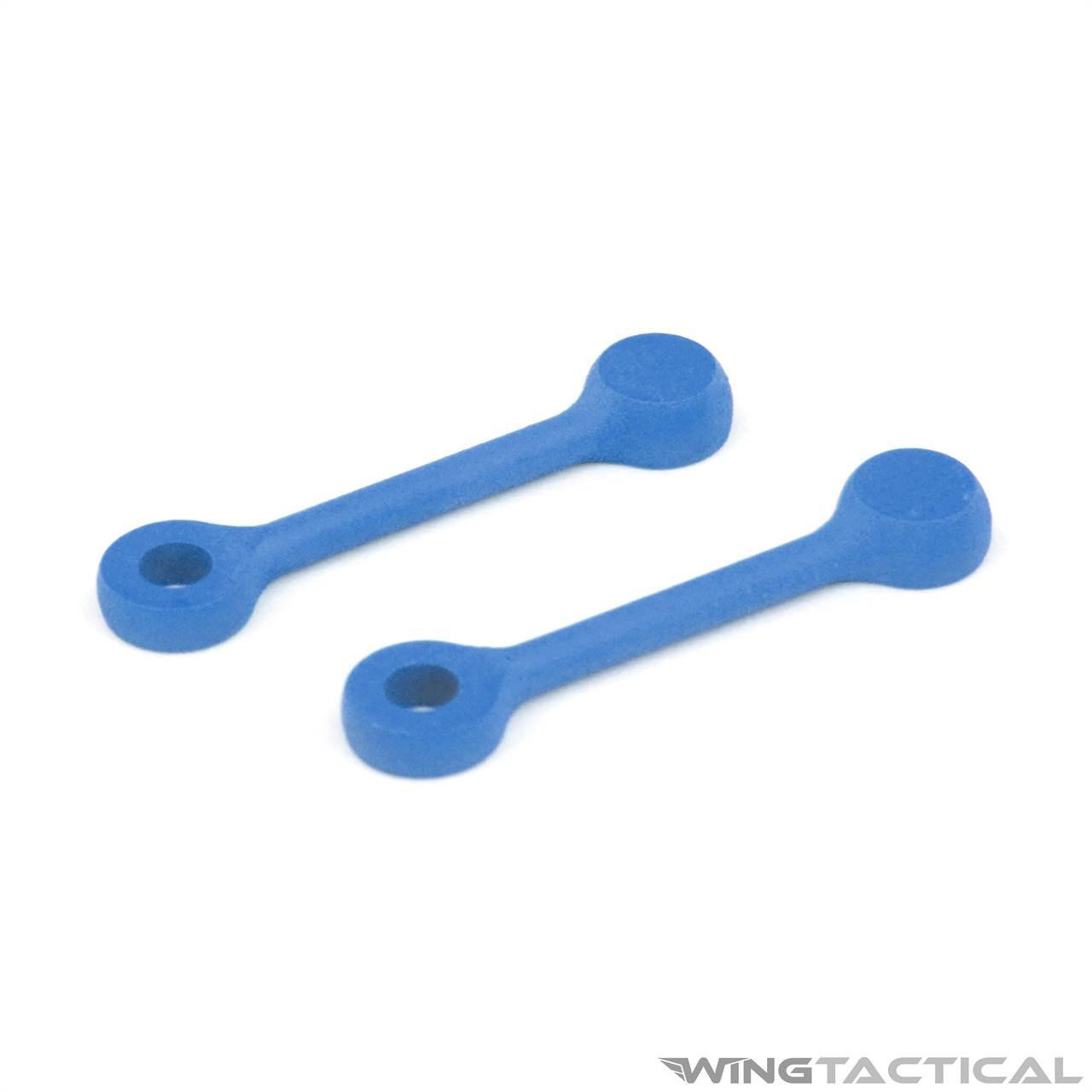

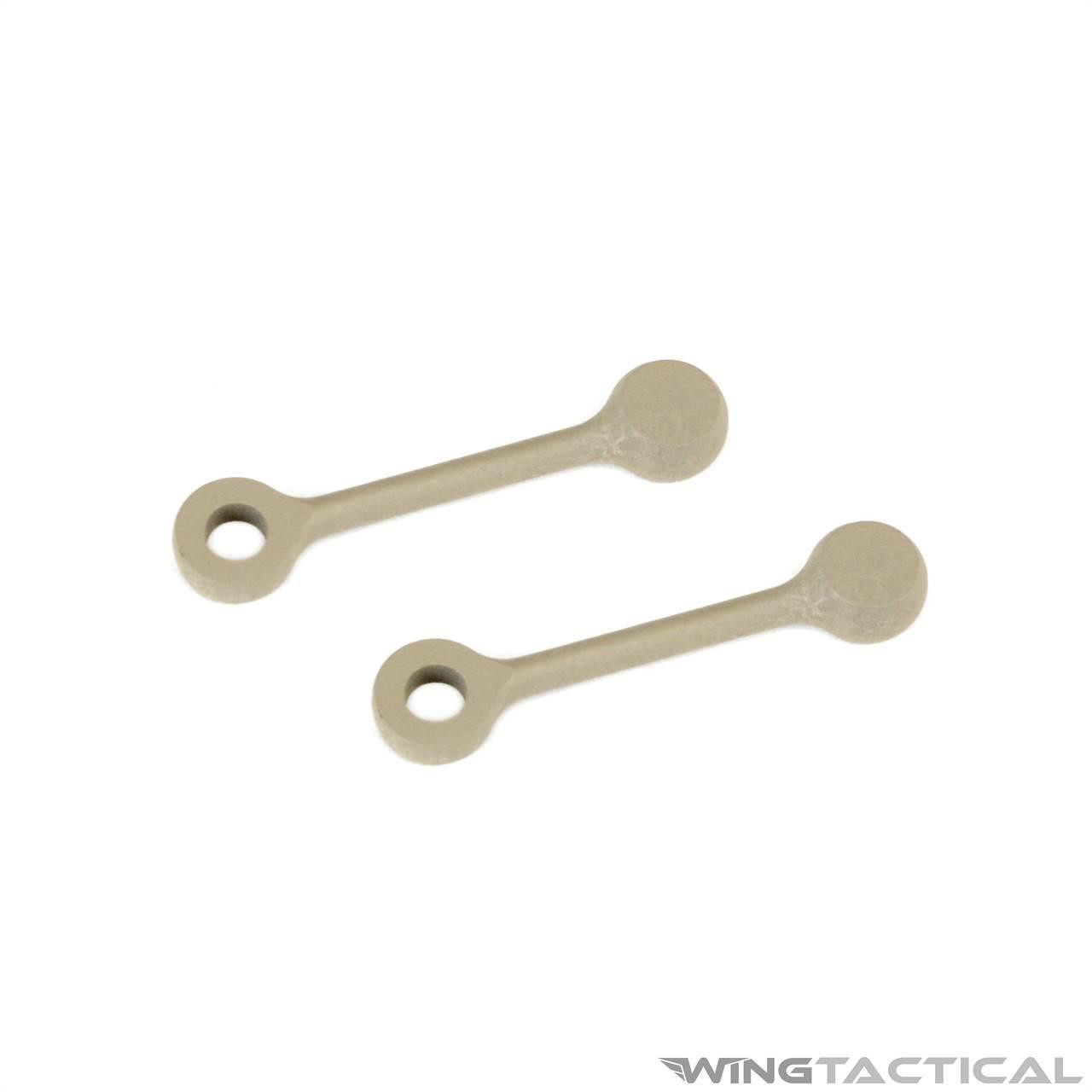

- Available in Black, OD Green, Silver, Zombie Green, Blue, Red, and Flat Dark Earth finish
- Material: Stainless Steel
- Black: Black Nitride
- Other Colors: DuraCoated
- Weight: 0.28 oz.
- Side Plate Thickness: 0.12"
- Pin Size: ~0.154"
- AR-15 and AR-10
**The external width of some AR receivers may vary in the trigger/hammer pin area depending on the manufacturer. These pins may be shortened a small amount by carefully filing material evenly from both ends of the pins, but being too long will not affect the function or performance.
**The maximum torque Spec on the screw is 11 inch/lbs. (Over-torquing the screws can cause damageto these side plates)
**There is no strength difference between the Gen 2 and Gen 2 Mod 2 sideplates. The only difference is appearance.
- 1x Trigger Pin
- 1x Hammer Pin

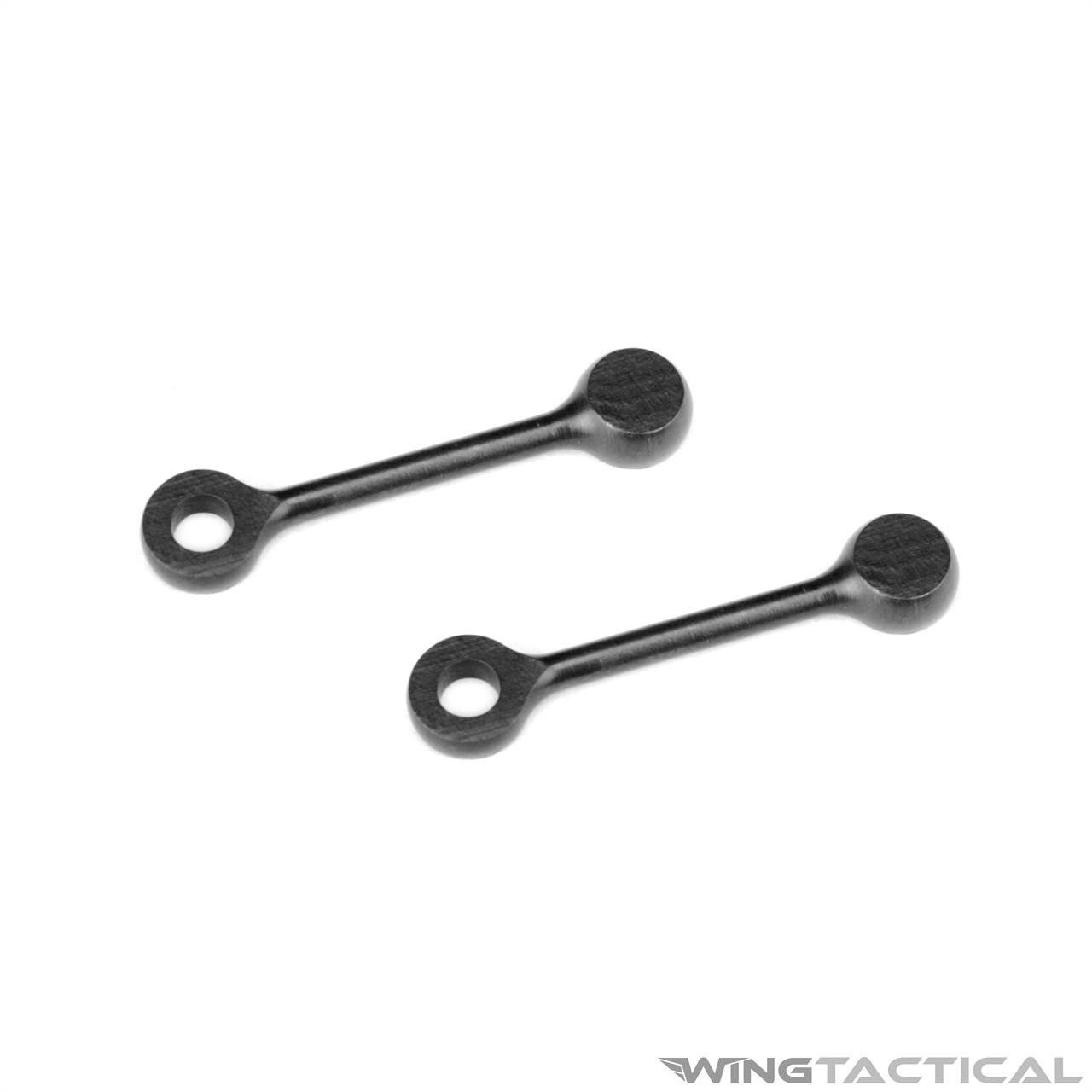

- 2x Anti-Rotating Side Plates
- 2x Set Screws
- 2x Torx Wrenches
- 1x Pin installation tool
It's long been standard practice to safety-wire critical connectors and fittings on aircraft. They used safety-wire to make 100 percent certain that nothing moved. Unfortunately, this process is not possible with your gun, even if it was it would be ugly. On the plus side, you get the chance to accomplish the same thing with a set of KNS anti-rotation pins.
Why Do I Need AR-15 Anti-Rotation Pins?
In quick succession, trigger and hammer pins coming loose and "walking out" during rapid fire is a common problem when firing full-auto AR-15s or firing semi-autos. If you as a AR owner is experiencing this problem, you have come to right place. The KNS Precision Generation 2, Modification 2 Non-Rotating Trigger and Hammer Pins eliminate this problem by attaching the two pins to one another with a set of exterior stainless steel retainers.
Undoubtedly, when you install a set of AR-15 anti rotation pins, you have taken the single best precaution to eliminate pin rotation and walk. Something as quick and simple to install as a little KNS hammer and trigger pin just gave you one less thing to worry about. A set of KNS AR-15 non rotating pins comes to you with a valuable, conical, brass guide. The design of this guide makes installing your KNS anti-rotation pins easy because it keeps tension on the trigger group during the switch.
KNS Hammer And Trigger Pin Are Easy To Install

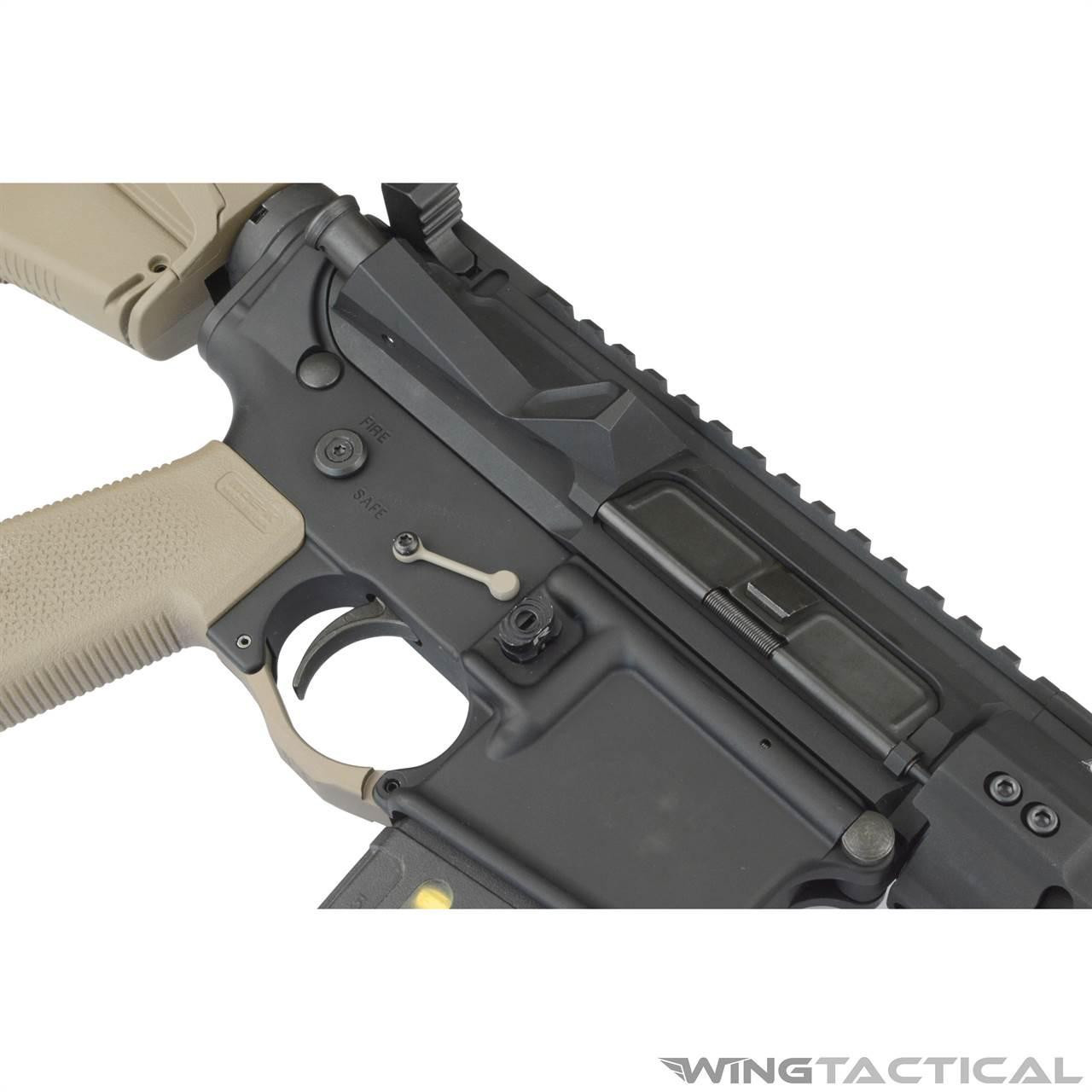

Is installing a set of AR-15 anti rotation pins something you really should consider? Well, that depends on several things. Quite a number of things can cause your pins to walk out on you. Automatic fire, an improperly tuned gun, excessive recoil, and some receivers have holes that are a bit out of tolerance to begin with. Ultimately, if you shoot enough the pins will move. The answer is a KNS hammer and trigger pin set, it puts a stop to all pin movement. Stop rotation, stop pin walk, stop receiver wear, install KNS AR-15 non rotating pins. This mod will not interfere with operation of your AR-15's exterior controls in any way. In fact, the installation can be performed without any permanent modifications or gunsmithing knowledge!
Showing reviews 1-25 of 27 | Next
Posted by Sean on 9th Aug 2018
I have one for each of my rifles. Too easy to install, and they just do what they’re intended to do.
Also on a side note Wing Tactical is an outstanding company. I had one of the pins on my rifle walk out. I ordered this set, selected two day shipping, emailed the guys at Wing Tactical that I needed this for a class I had to teach In a few days. The pins arrived less than 24 hours later. Excellent customer service guys, RLTW!!!!!
KNS Precision Gen 2 Mod 2 non-rotating hammer and trigger pins
Posted by Evans on 14th Jun 2018
Excellent product quality, easily installed. Fit was perfect.
Posted by Unknown on 13th Jun 2018
I used a set of these non-rotating pins to install a Rise RA 140 trigger assembly. The pins come with a brass guide to screw on the threaded pin to assist in installation. The included torx screws have a thread locking compound already on them, making them more reliable in the field. Just more peace of mind for your rifle set-up.
Great product. Great service!
Posted by Andy on 3rd Mar 2018
Love the gear. Love the servce of wingtactical
You get what u pay for.
Posted by Armstrong on 27th Dec 2017
Tried cheaper set ups because u would think such a simple device shouldnt be expensive. If you want your pins to not rotate or walk on u this is the only way to go. Save yourself the headache, bite the bullet and buy these. Wing tacticals shipping times are super quick, ill order from them again.
Met all expectations
Posted by Unknown on 25th Jul 2017
Installed easily, fit and finish is clean and crisp, will be ordering again for another build
Fit, Function and Appearance are top notch
Posted by Dave on 25th Jul 2017
Awesome product, fast shipping. Arrived one day sooner than estimated.
Posted by Unknown on 16th Jul 2017
Bought a set of the red. Love em.
Functional and visually appealing
Posted by Thom on 11th Jul 2017
Work as advertised, purchased the model in red, really stands out on weapon. Easy to install.
A must have !
Posted by John on 16th Jun 2017
just installed these on my ruger AR556. Great fit , easy to install . Took about 10 min.Are they actually a must have ? upto you but they do work. Wing tactical ships really quick.
Posted by -Edgar on 17th Feb 2017
I'm always working on the triggers on my rifles and this part is recommended, if you don't want your factory pins to walk out. If you like me and shoot around 600 round per weekend, its a must. Plus they look good on FDE!
RED IS AWESOME
Posted by Hammer on 13th Feb 2017
Dropped a 1 piece trigger in my daughter's AR Pistol, these red anti-rotation pins just add to the red. It is wicked.
easier than I thought
Posted by Unknown on 10th Oct 2016
Super easy to put in, I really like the brass button that helped punch out the older pins without losing tension. The green looks great.
Good Investment for Polymer Lowers
Posted by John on 3rd Oct 2016
I bought this to use in a polymer lower since the material is significantly softer than the usual aluminum (for you English types, please note there is only ONE letter 'i' in aluminum). Assembly was simple and quick, even with the very tight tolerances in my lower. I went with black, but pick the right accent color for your needs and sleep well knowing your trigger and hammer pins are stable!
Posted by chris on 10th Sep 2016
Went in easily and look great
Posted by Cutter USMC RET on 9th Sep 2016
Excellent product, solid, recommended
Posted by Unknown on 29th Aug 2016
I know there is questions as to if these are really needed or not but for my peace of mind, well worth the answer
Posted by Andy Hollenback on 4th Aug 2016
This was my first transaction with Wing Tactical and it was great. They had the best price, reasonable shipping costs and shipped super fast. What's not to like? Hope to do business with again!
Worth It, Every Time
Posted by Jude America on 30th Apr 2016
Good pins don't need much upgrading. Change the side bars, make them skeletonized or whatever color, but the pins do the job. Even with lower-end drop in triggers, the KNS pin guide makes the job less frustrating and worth every penny.
just not the right fit
Posted by Unknown on 21st Mar 2016
Look good, nice and sturdy, but just don't fit very snug in my timney trigger. I'll probably try another brand or just go back to my old pins
Posted by Brian on 9th Feb 2016
Very nice upgrade from the standard pins. Stainless steel and easy install. Takes less then five minutes. Only drawback is you may need to file the ends down ever so slightly on the hammer pin or you could possibly have a gap. Other then that I recommend it highly for the life of your lower receiver.
Posted by Unknown on 5th Feb 2016
I will probably be buying more
Posted by Unknown on 11th Nov 2015
Ordered this awesome product but what really stood out was the speed and service this company displayed
Posted by Unknown on 7th Aug 2015
I like the way they look on my gun. Easy to install and I don't have to worry about my pins moving.
AR's work better with their hammer pins in.
Posted by Gary B on 3rd Aug 2015
If you ever lost one you would know that. I did. This is the solution. That they are anti-rotation is just a plus. Pin retention is paramount. lose your hammer or trigger pin and you cannot shoot. Very disconcerting! These are reliability items on every AR in the family.
