• Finely tuned and designed to enhance the accuracy and precision for AR-10
  • Frictionless Release Technology offer an exceptionally crisp break
  • Short, two-stage action, designed to feel like a 1911 trigger
  • Pull-weight can be adjusted from 1.5 to 4 lbs.
  • Pull weight is quickly and confidently be adjusted in 2 oz. increments
  • Patented CLKR Technology™ features an easy-to-access adjustment screw to adjust your trigger’s pull weight quickly
  • Patented TKR Technology™ minimizes overtravel so your sight picture experiences less disruption
  • FLTWR Spring Technology™ - flat wire hammer spring provide more force into the hammer


  • Material: 440C Stainless Steel Components with 7075 Aluminum Housing
  • Finish: Red
  • Type: Two Stage

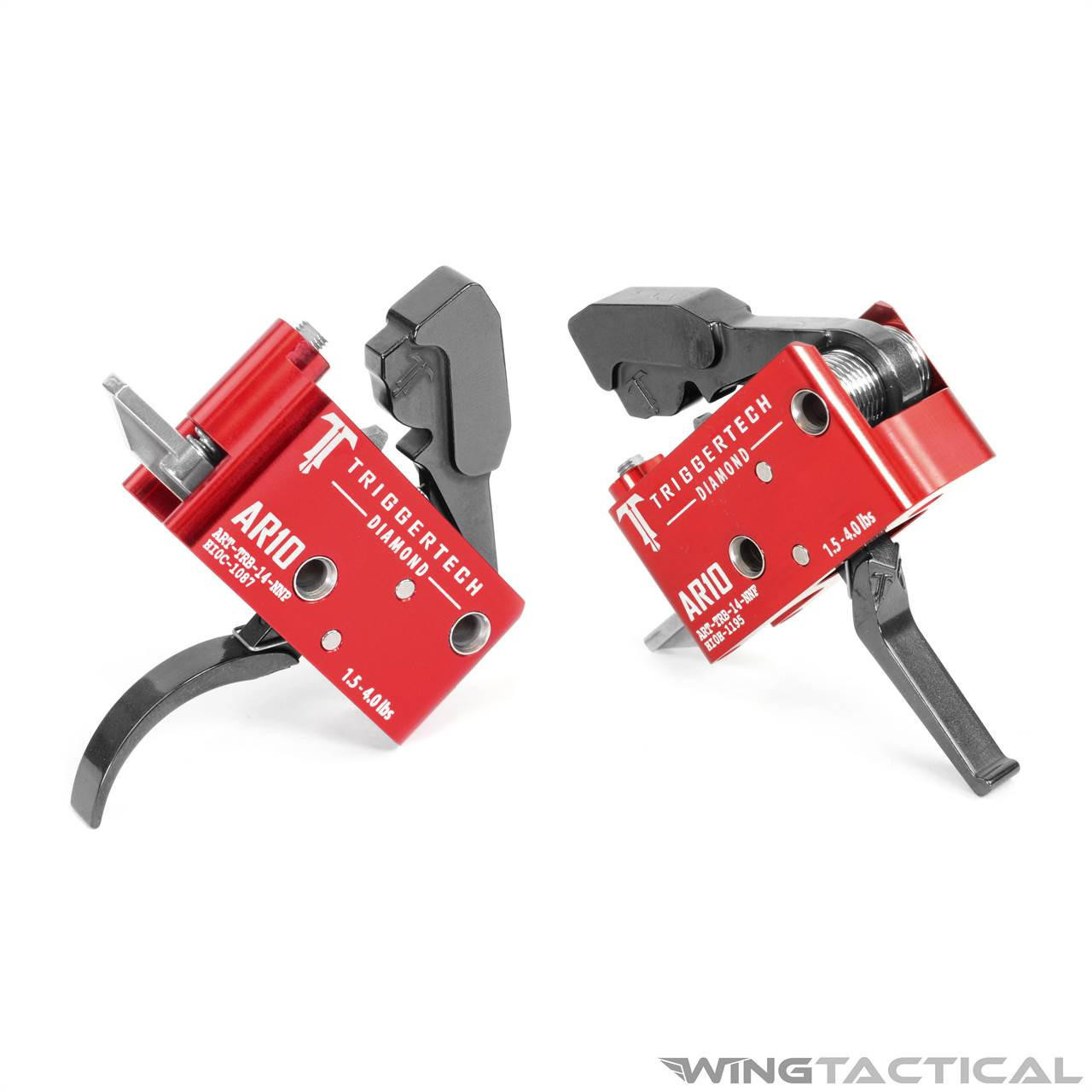

  • Trigger Style: Pro Curved or Flat Trigger
  • 1st Stage Pull Weight: 0.25-lb (Fixed)
  • 2nd Stage Pull Weight: 1.25 - 3.75-lb (Adjustable)
  • Pin Size: Small Pin (.154)

*All pull weights and measurements are approximate.


  • AR-10 platforms and pump action AR


  • 1x TriggerTech 2-Stage AR-10 Diamond Trigger
  • 2x Allen Keys

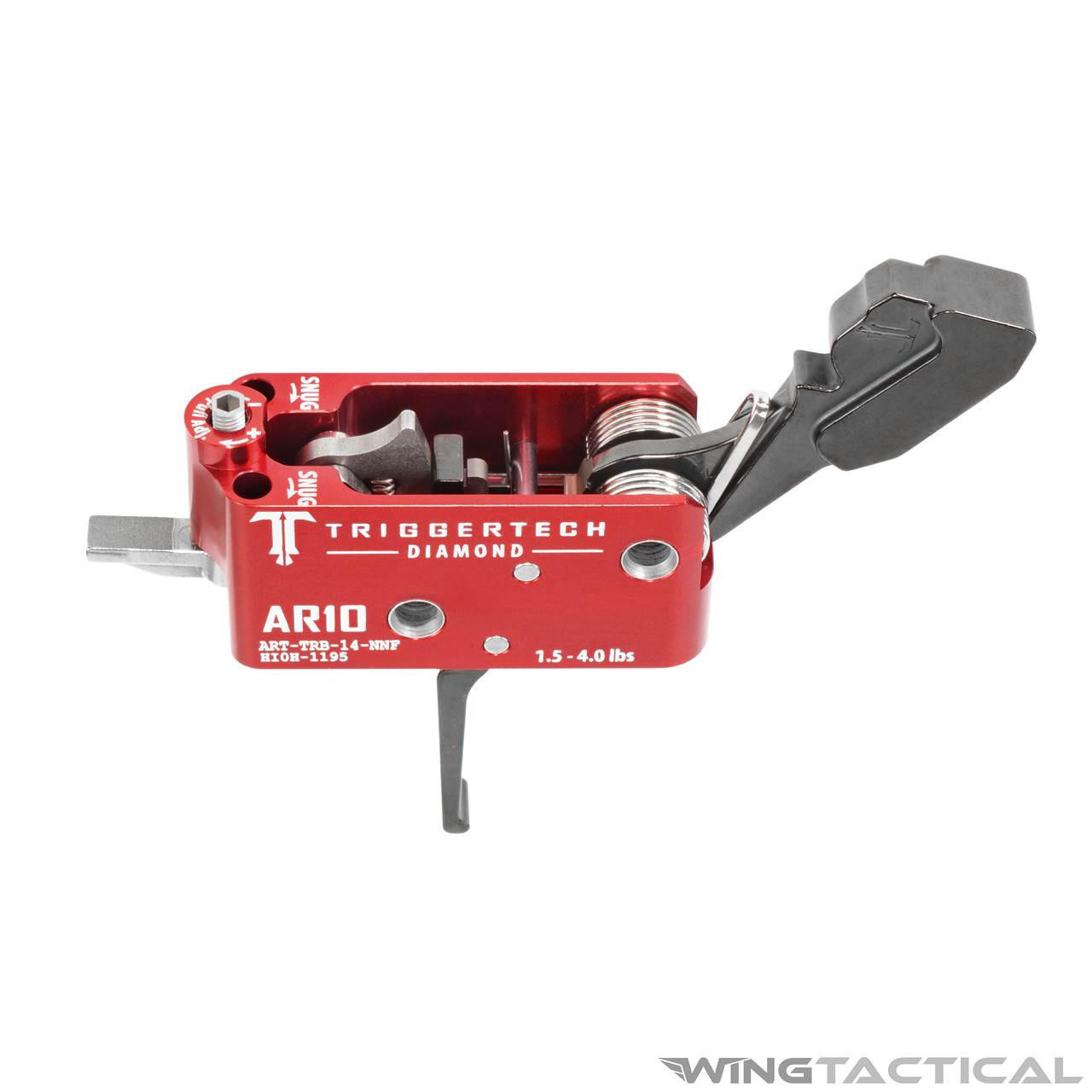

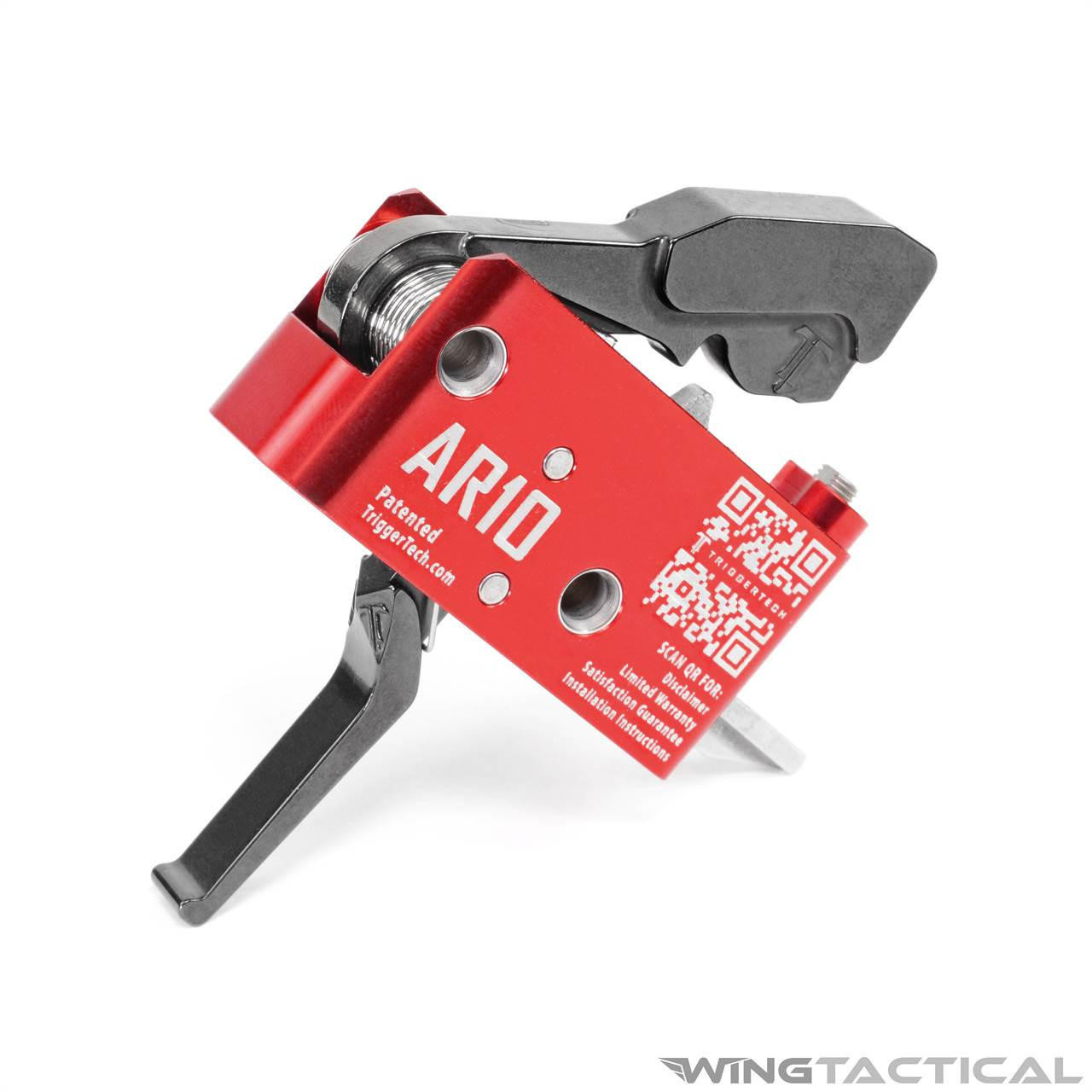

The AR-10 platform and other similar AR pattern rifles chambered in .308 Win are versatile and can be used in many applications. If you are building an AR-10 pattern rifle, you need to make sure that you have a good trigger.

The 2-Stage AR-10 Diamond Trigger from Trigger Tech is an excellent option that can improve your rifle's performance and accuracy. This trigger assembly incorporates a frictionless release system, which makes the trigger very smooth and gives it a crisp break. With the patented TKR technology, these triggers also have a very short reset, with minimal over-travel. This allows for quick follow-up shots and allows you to maintain your sight picture more easily without disruption.

The Diamond trigger is made to have a premium feel, and it has an adjustable trigger pull to make it compatible with a wide range of applications. This trigger can be adjusted to be as light as 1.5 lbs for competitive long-range shooting, and you can also increase the trigger weight in 2 oz increments up to 4 lbs.

The TriggerTech 2-Stage AR-10 Diamond Trigger can also improve the reliability of your firearm. It uses a patented FLTWR Spring Technology, which incorporates a flat wire hammer spring and allows for a stronger hammer strike.
